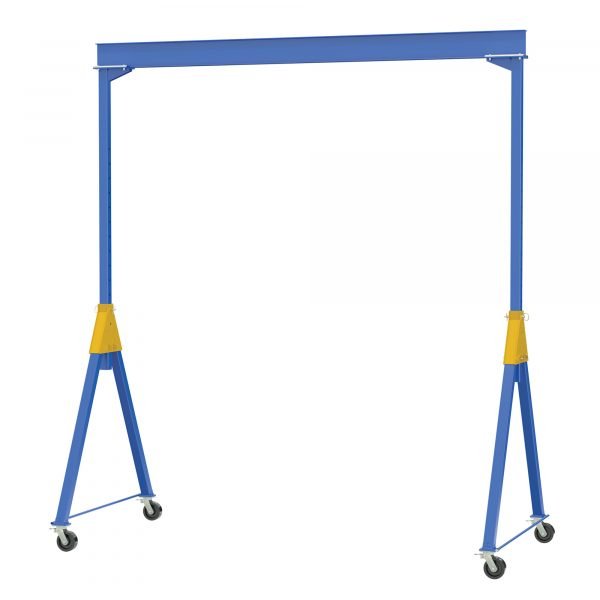

Vestil AHSN-6-20-16-TLC Adj. Knockdown Gantry Crane (6000lb Capacity, 20ft Beam, Total Lock)
Vestil AHSN-6-20-16-TLC Adj. Knockdown Gantry Crane delivers a professional 6,000lb capacity with a 20-foot beam and 16-foot adjustable height. Equipped with Total-Locking casters, this gantry is the ultimate mobile solution for high-clearance lifting across expansive facility floors.
- Extreme 16-Foot Vertical Reach: Provides maximum height for lifting oversized industrial components.
- Reliable 6,000lb Weight Load: Sturdy structural steel pillars ensure safe and reliable lifting performance.

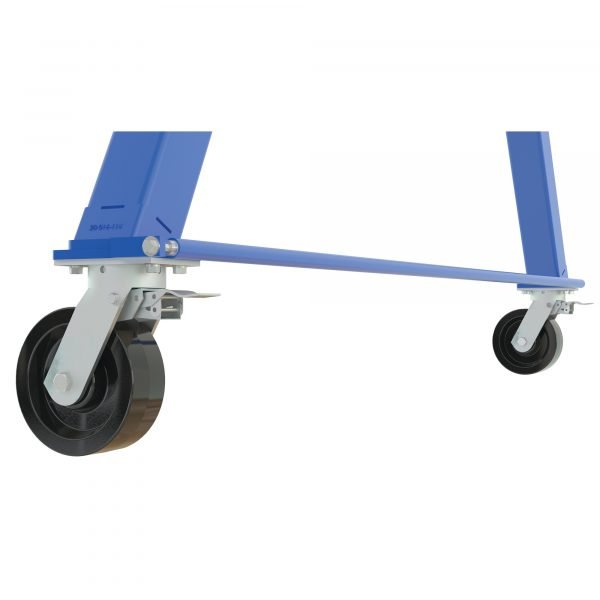

- Total-Locking Safety Casters: Ensures the crane remains stationary and rigid during critical overhead moves.
- Massive 20-Foot Reach: Wide span facilitates the movement of bulky assets across large shop areas.
- Expert Facility Rigging: Adjustable height allows the crane to be tailored to specific project requirements.
Description
The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard with total locking casters. The Total Locking Casters lock the rigging in any position and locks the wheel from rotating. Height is adjustable in 6in. increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.
What’s Included
- (1) Gantry Crane
| Item# | 4834627 |
| Brand | Vestil |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 1599.0 lbs |
| Product Type | Gantry Crane |
| Material | Steel |
| Product Weight | 1483.0000 lb |
