Quincy QP MAX 353D80VCA46M Air Compressor – Pressure
In Stock
$2,104.00
In Stock

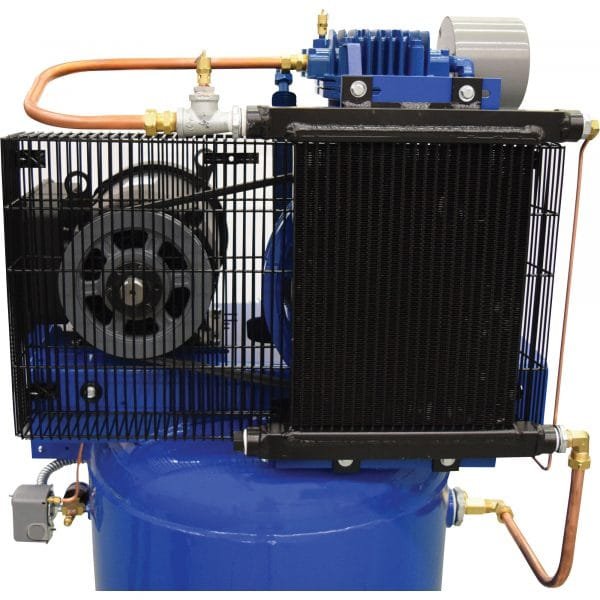

Quincy QP MAX 353D80VCA46M Air Compressor is a 5.0 HP pressure-lubricated industrial system featuring an 80-gallon vertical tank and 175 PSI max capability. This heavy-duty unit utilizes premium cast iron components to ensure superior thermal stability and long-term mechanical reliability.
High Volume Airflow: Delivers 17.2 CFM @175PSI.
Vertical Tank Design: Features compact footprint.
Heavy Duty Construction: Guarantees industrial durability.
Three Phase Power: Supports reliable 460V.
Industrial Shop Application: Powers pneumatic tools.
Quincy 353D80VCA46M Air Compressor Specs
| Brand | Quincy |
| Full Model Code | 353D80VCA46M (QP Series) |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Pressure Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 5 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 17.2 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 76-80 dB(A) |
| Outlet Connection Size | 1/2 Inch NPT |
| Tank Volume | 80 Gallons (Vertical) |
| Dimension (LxWxH) | 940 x 711 x 1727 mm |
| Net Weight | 260 kg |
| Control Panel Type | Magnetic Starter Mounted / Pressure Lube Monitor |
| Voltage/Phase/Frequency | 460V / 3 Phase / 60 Hz |
| Standard Warranty | 1 Year (Extended to 3Y with Kit) |
| Maintenance Interval | 1000 Hours (Synthetics) |
| Application | Critical industrial environments requiring the highest level of pump protection via pressurized lubrication and 460V efficiency. |
