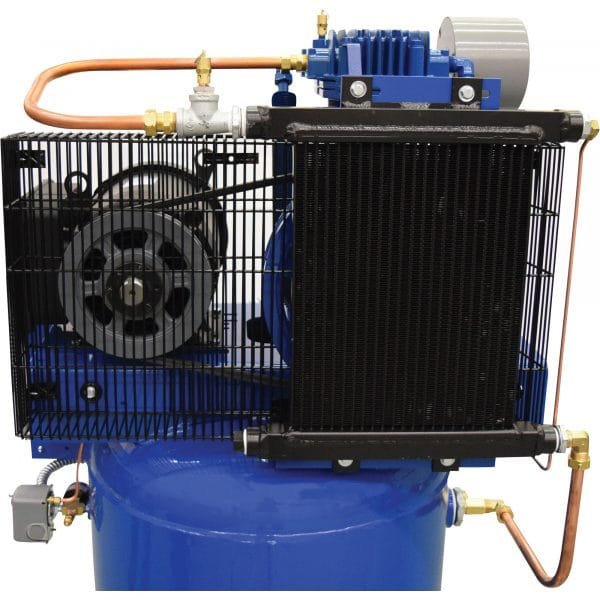

Quincy QP MAX 353D80VCA20M Air Compressor – Pressure
In Stock
$2,104.00
In Stock
Quincy QP MAX 353D80VCA20M Air Compressor – Pressure This heavy-duty 5 HP duplex system features a specialized vertical configuration and pressure-lubricated pumps designed for continuous-duty in professional automotive shop environments.
Redundant Motor Design: Dual high performance motor units
Active Oil Pressure: Integrated pump for internal lubrication
Vertical Tank Configuration: Space saving 80 gallon design
Low Voltage Phase: Requires 200V three phase power
Extended Operational Life: Engineered for 100 percent duty
Quincy 353D80VCA20M Air Compressor Specs
| Brand | Quincy |
| Full Model Code | 353D80VCA20M (QP Series) |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Pressure Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 5 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 17.2 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 76-80 dB(A) |
| Outlet Connection Size | 1/2 Inch NPT |
| Tank Volume | 80 Gallons (Vertical) |
| Dimension (LxWxH) | 940 x 711 x 1727 mm |
| Net Weight | 260 kg |
| Control Panel Type | Magnetic Starter Mounted / Pressure Lube Monitor |
| Voltage/Phase/Frequency | 200-208V / 3 Phase / 60 Hz |
| Standard Warranty | 1 Year (Extended to 3Y with Kit) |
| Maintenance Interval | 1000 Hours (Synthetics) |
| Application | Critical industrial environments requiring high pump reliability and superior 208V 3-phase efficiency. |
