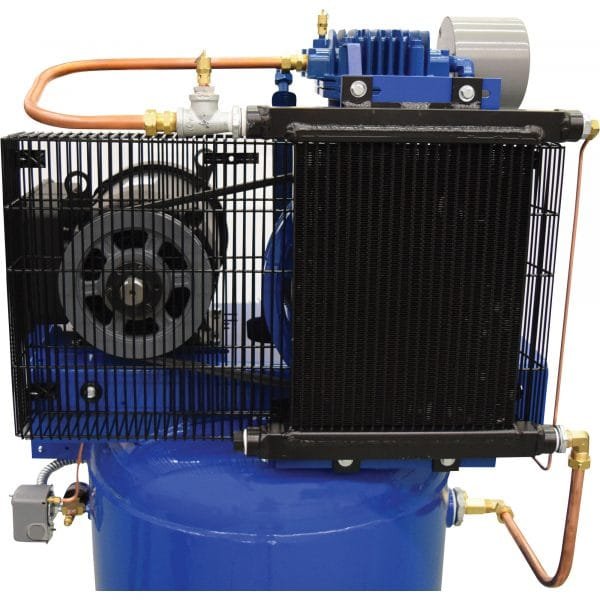

Quincy QP MAX 3153D12HCB20M Air Compressor – Pressure
In Stock
$3,650.00
In Stock
Quincy QP MAX 3153D12HCB20M Air Compressor – Pressure This industrial 15 HP duplex system features a massive 120-gallon horizontal configuration with pressure-lubricated pumps built to ensure unrivaled air reserve for large plants.
Ultimate Motor Power: Powerful 15.0 HP industrial performance
Massive Storage Capacity: Industrial 120 gallon horizontal tank
Low Voltage Phase: Requires 200V three phase power
Forced Lubrication System: Internal oiling ensures pump longevity
Rugged Material Build: Durable heavy duty pump components
Quincy 3153D12HCB20M Air Compressor Specs
| Brand | Quincy |
| Full Model Code | 3153D12HCB20M (QP Series) |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Pressure Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 15 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 51.3 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 80-84 dB(A) |
| Outlet Connection Size | 1 Inch NPT |
| Tank Volume | 120 Gallons (Horizontal) |
| Dimension (LxWxH) | 1981 x 762 x 1219 mm |
| Net Weight | 510 kg |
| Control Panel Type | Magnetic Starter Mounted / Pressure Lube Monitor |
| Voltage/Phase/Frequency | 200-208V / 3 Phase / 60 Hz |
| Standard Warranty | 1 Year (Extended to 3Y with Kit) |
| Maintenance Interval | 1000 Hours (Synthetics) |
| Application | Premium industrial air supply for factories requiring superior pump protection and 208V 3-phase efficiency. |
