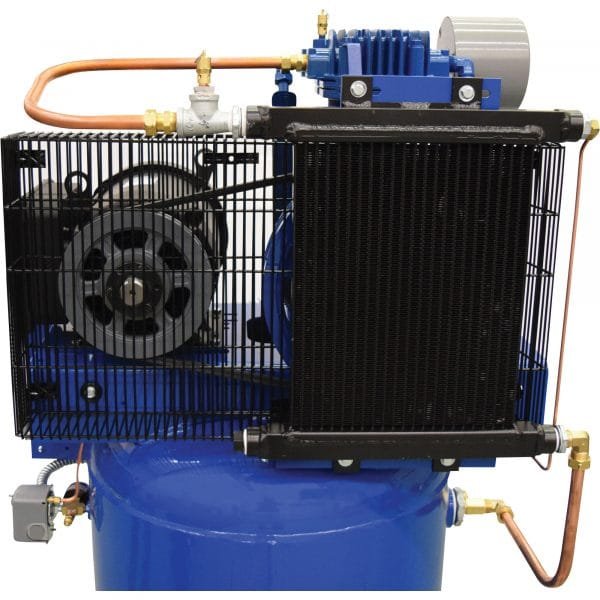

Quincy 3103D12VCA20M Air Compressor – 10HP 120Gal
Redundant Motor Design: Dual 5.0 HP motor units
Massive Vertical Storage: Space saving 120 gallon tank
Low Voltage Phase: Requires 200V three phase power
Maximum Rated Pressure: Reaches maximum 175 PSI operation
Rugged Material Build: Durable heavy duty pump components
Description
Quincy 3103D12VCA20M 10HP 120 Gallon Vertical Compressor
The Quincy 3103D12VCA20M is an elite industrial reciprocating compressor from the legendary QP series, engineered for the most demanding 24/7 continuous duty applications. Driven by a 10HP three-phase motor on a 120-gallon vertical tank, this unit delivers an impressive 35.0 CFM at 175 PSI, making it the industry standard for high-volume manufacturing facilities.
Technical performance is optimized via a pressure-lubricated pump that features a positive displacement oil pump for consistent lubrication to all internal components. Choosing industrial reciprocating air compressors from Quincy’s QP lineup ensures a significantly longer life than splash-lubricated models, thanks to the advanced thermal management and automotive-style oil filter system.
Quincy 10HP Key Features
- Tank Size: 120 Gallon Vertical
- Lubrication: Full Pressure Lubricated
- Starting System: Magnetic Starter Included
- Fuel System: 200V Three Phase
- Max Pressure: 175 PSI Rating
- Air Displacement: 35.0 CFM Delivery
- Warranty: 1 Year Limited
Advanced QP Pump Engineering
The unit features the Quincy QP-10 cast-iron pump, which includes a hydraulic unloader and low-oil level shutdown to protect your investment. The 120-gallon vertical ASME tank acts as a massive energy reservoir while maintaining a compact footprint. This design is specifically engineered for high-ambient temperatures and grueling industrial environments where system failure is not an option.
Heavy Industry and Production
Ideally suited for large manufacturing plants and heavy equipment maintenance, this Quincy model offers the highest reliability in its class. The pressure lubrication system allows for a smoother, more continuous operation compared to standard industrial units. Industrial engineers value the 3103D12VCA20M for its rebuildable components and its ability to power critical pneumatic infrastructure reliably.
Secure your facility’s air supply with the ultimate reliability and high-output performance of the Quincy 10HP industrial compressor. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Quincy 3103D12VCA20M – 10 HP 200V 3-Phase 120-Gallon Air Compressor
| Brand | Quincy |
|---|---|
| Model | 3103D12VCA20M |
| Compressor Horsepower | 10 HP |
| Horsepower Range | 10 – 20 HP |
| Voltage | 200/3 |
| Compressor CFM | 35 |
| Compressor CFM Range | 25 – 44.9 |
| Compressor PSI | 175 |
| Compressor Tank Size | 120 Gallon |
| Tank Size Range | 90 – 200 Gallon |
| Dimensions | 42 × 42 × 82 in |
| Weight | 975 lbs |
| Cooling | Yes |
| Warranty | 5-Year |
