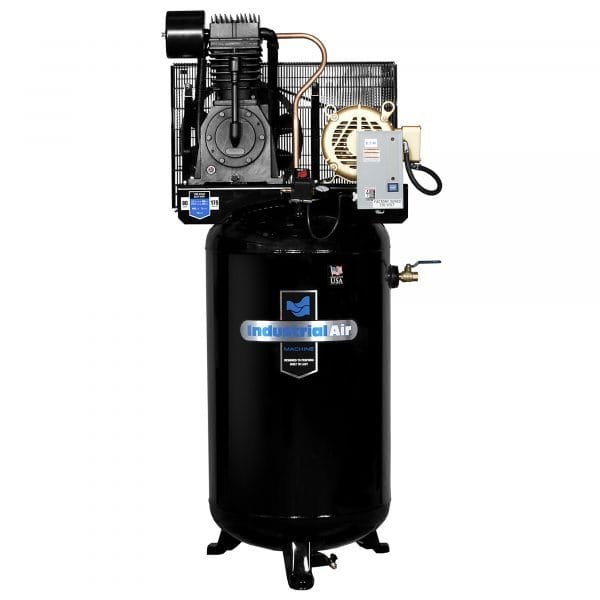

Industrial Air IV7568075 – 7.5 HP 80 Gal Two-Stage Compressor 460V
In Stock
$1,543.00
In Stock
Industrial Air IV7568075 7.5 HP 80 Gal Two-Stage Compressor 460V This advanced 460V three-phase 7.5HP system features a large 80-gallon vertical configuration designed to deliver maximum energy efficiency for high-voltage industrial plant pneumatic grids.
High Voltage Power: Delivers industrial 7.5 HP performance
Industrial Vertical System: Features robust 80-gallon stationary design
High Voltage Phase: Requires 460V three-phase electrical power
Maximum Industrial Pressure: Delivers consistent 175 PSI delivery
Full Ten Year: Includes premium 10-year air end warranty
Industrial Air IV7568075 80 Gallon Vertical Two Stage 7.5 HP 460V
| Model | IV7568075 |
| Brand | Industrial Air |
| Warranty | 2 year |
| Ship Weight | 715.0 lbs |
| Horsepower | 7.5 HP |
| Air Tank Size | 80 Gal |
| Volts | 460 |
| Stage | 2 |
| CFM at 90 PSI | 22.1 |
| Max. PSI | 175 |
| CFM at Max. PSI | 21.2 |
| Motor Phase | 3 |
| Amps | 9.7 |
| Pump Material | Cast Iron |
| Oil Required | Yes |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Air Dryer | None |
| Tank Orientation | Vertical |
| Product Weight | 623.0000 lb |
| Dimensions L x W x H (in.) | 40.25 x 32.25 x 80.0 in |
