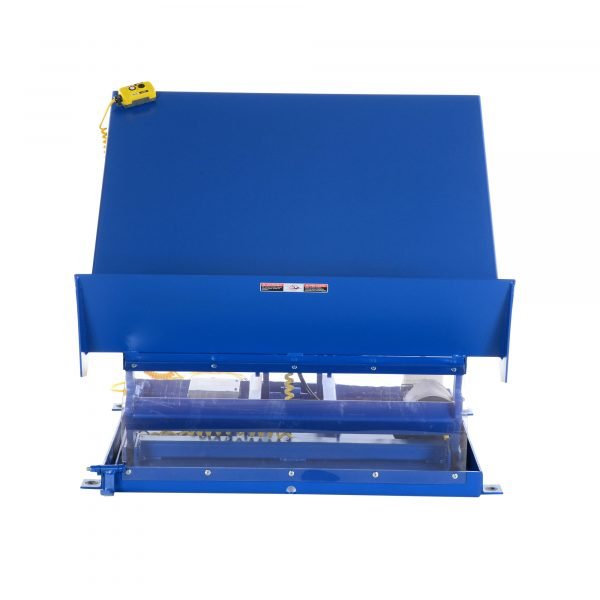

Vestil UNI-4848-6-BLU-208-3 6K Lift and Tilt Table (Blue, 208V 3-Phase)
In Stock
$3,283.00
In Stock
Vestil UNI-4848-6-BLU-208-3 Lift and Tilt Table delivers an extreme-duty 6,000lb capacity in blue utilizing 208V 3-phase power. This robust table is designed for the heaviest manufacturing environments, providing a high-strength platform that combines vertical lifting with a tilting function to optimize worker comfort and efficiency during heavy assembly.
- Extreme 6,000lb Industrial Rating: Reinforced high-tensile steel frame supports the heaviest facility assets effortlessly.
- High-Performance 208V 3-Phase Motor: Engineered for rapid and consistent vertical and tilt movement in high-throughput zones.
- 40-Degree Tilting Performance: Dramatically reduces back strain by bringing materials within a safe ergonomic reach.
- Large 48″ x 48″ Work Surface: Expansive platform area accommodates oversized machinery and heavy pallets.
- Internal Safety Velocity Fuses: Provides critical security by preventing the platform from falling in case of hydraulic failure.
Description
The Single Scissor Lift Tilt Table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This Scissor Table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor Table must be lagged to the floor.
What’s Included
- (1) Lift Table
| Item# | 4475821 |
| Brand | Vestil |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 859.0 lbs |
| Capacity | 6,000 lb |
| Lowered Height | 8 in |
| Raised Height | 14.75 in |
| Platform Length | 48 in |
| Platform Width | 48 in |
| Material | Steel |
| Tilting | Yes |
| Product Weight | 825.0000 lb |
| Dimensions L x W x H (in.) | 51.5 x 48.0 x 20.0 in |
