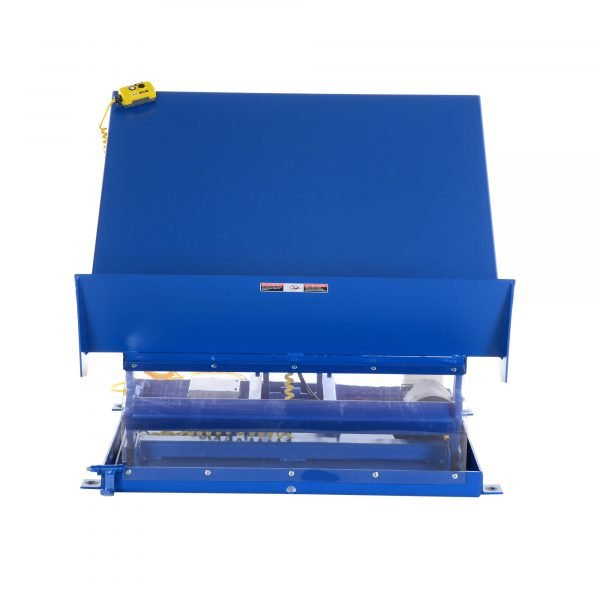

Vestil UNI-4848-2-BLU-230-3 2K Lift and Tilt Table (Blue, 230V 3-Phase)
In Stock
$2,104.00
In Stock
Vestil UNI-4848-2-BLU-230-3 Lift and Tilt Table offers a robust 2,000lb capacity in blue with 230V 3-phase power for specialized material handling. This 48×48 inch platform is the ideal ergonomic choice for sorting and assembly, providing a stable surface that can be lifted and tilted to match the operator’s exact needs.
- Reliable 2,000lb Industrial Rating: Sturdy industrial build handles standard loads with structural integrity.
- Ergonomic Lift and Tilt Control: Combines height and angle adjustment to maximize worker throughput.
- Smooth 230V 3-Phase Hydraulics: Provides consistent vertical and tilt movement for high-throughput zones.
- Large 48″ x 48″ Work Surface: Provides ample room for assembly and sorting tasks in busy shops.
- Expert Material Handling Solution: Increases efficiency by providing a mobile, height-adjustable workstation.
Description
The Single Scissor Lift Tilt Table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This Scissor Table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor Table must be lagged to the floor.
What’s Included
- (1) Lift Table
| Item# | 4475960 |
| Brand | Vestil |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 771.0 lbs |
| Capacity | 2,000 lb |
| Lowered Height | 8 in |
| Raised Height | 14.75 in |
| Platform Length | 48 in |
| Platform Width | 48 in |
| Material | Steel |
| Tilting | Yes |
| Product Weight | 751.0000 lb |
| Dimensions L x W x H (in.) | 51.5 x 48.0 x 20.0 in |
