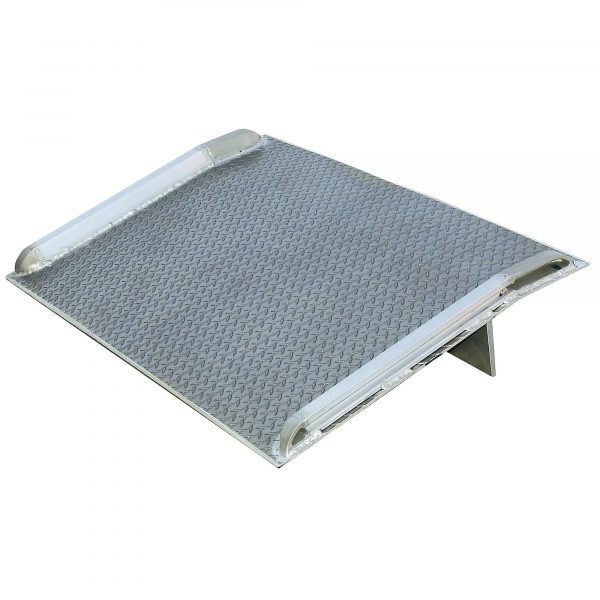

Vestil BTA-09007872 9K Aluminum Dockboard (78in. Wide x 72in. Long)
In Stock
$2,454.00
In Stock
Vestil BTA-09007872 9K Aluminum Dockboard offers a 9,000lb capacity and measures 78 inches wide by 72 inches long. This dockboard provides a robust and secure transition for loading and unloading in mid-to-high volume distribution environments.
- Reliable 9,000lb Rating: Engineered to withstand the weight of loaded material handling equipment.
- Standard 78″ Width: A versatile size that fits most standard trailers while providing ample wheel clearance.
- Integrated Locking Legs: Prevents the board from shifting during use for maximum operator safety.
- Durable Aluminum Build: Resists rust and corrosion, making it ideal for outdoor or refrigerated loading docks.
- Safety Side Curbs: Tapered side curbs improve safety and facilitate easier board positioning.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 78 X 72 and usable dimenions of 73-1/2 X 72. This dockboard is rated at a 9000 lbs. capacity.
| Item# | 4220908 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 219.0 lbs |
| Capacity | 9,000 lb |
| Ramp Length | 72 in |
| Ramp Width | 78 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.5 in |
| Left Leg Height | 12 in |
| Right Leg Height | 14 in |
| Height Difference | 8.5 in |
| Usable Ramp Length | 72 in |
| Usable Ramp Width | 73.5 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 219.0000 lb |
| Dimensions L x W x H (in.) | 72.0 x 78.0 x 16.75 in |
