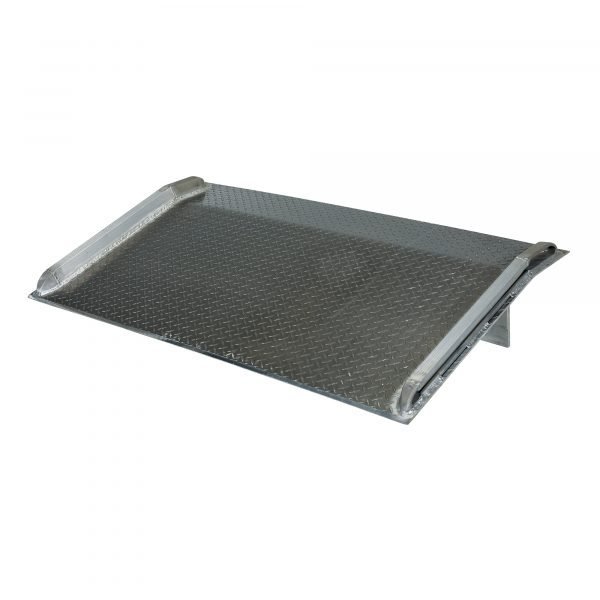

Vestil BTA-06007260 6K Aluminum Dockboard (72in. Wide x 60in. Long)
In Stock
$819.00
In Stock
Vestil BTA-06007260 6K Aluminum Dockboard offers a 6,000lb capacity with a balanced 72-inch width and 60-inch length for standard loading tasks.
- Robust 6,000lb Industrial Rating: Specifically built for heavy-duty material handling over short gaps.
- Standard 72″ Width: Offers a stable pathway for heavy equipment while maintaining dock efficiency.
- Yellow Structural Curbs: High-visibility side rails prevent steering errors and increase rigidity.
- Secure Locking System: Fixed legs ensure the dockboard remains stationary between the dock and trailer.
- Lightweight Portability: Aluminum construction makes it easier to handle than steel boards.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 72 X 60 and usable dimenions of 67 X 59-3/4. This dockboard is rated at a 6000 lbs. capacity.
| Item# | 4221628 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 200.0 lbs |
| Capacity | 6,000 lb |
| Ramp Length | 60 in |
| Ramp Width | 72 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.375 in |
| Left Leg Height | 11 in |
| Right Leg Height | 13 in |
| Height Difference | 7 in |
| Usable Ramp Length | 59.75 in |
| Usable Ramp Width | 67 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 200.0000 lb |
| Dimensions L x W x H (in.) | 60.0 x 72.0 x 16.25 in |
