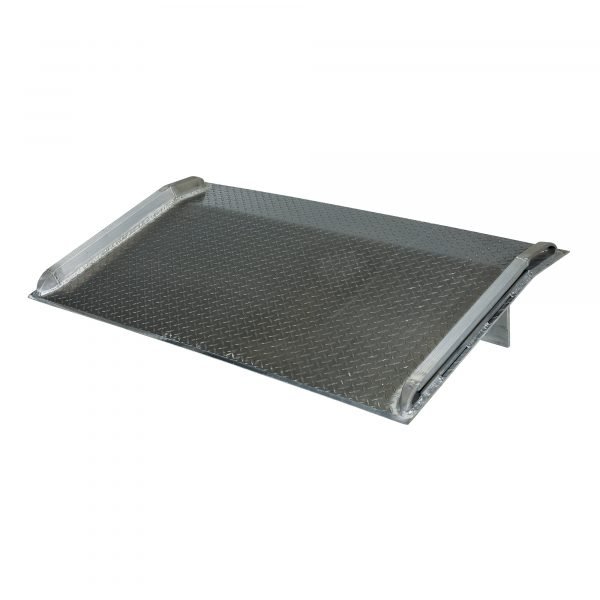

Vestil BTA-06006072 6K Aluminum Dockboard (60in. Wide x 72in. Long)
In Stock
$828.00
In Stock
Vestil BTA-06006072 6K Aluminum Dockboard provides a 6,000lb capacity in a 60-inch wide by 72-inch long size, perfect for narrow dock openings.
- Heavy-Duty 6,000lb Capacity: Supports warehouse equipment and freight in a compact, long-reach size.
- Concise 60″ Width: Fits narrower dock doors while still providing professional weight support.
- Safety Side Rails: Painted yellow to improve awareness and prevent lateral equipment runoff.
- Secure Locking Legs: Designed to anchor the board firmly to prevent sliding during heavy use.
- Maintenance-Free Aluminum: Resists rust and chemical damage for long-term industrial use.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operat aions. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at a least four times the lifting capacity of fork truck. The width of the dockboard should be at a least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 60 X 72 and usable dimenions of 55 X 71-3/4. This dockboard is rated at a 6000 lbs. capacity.
| Item# | 4223818 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 164.0 lbs |
| Capacity | 6,000 lb |
| Ramp Length | 72 in |
| Ramp Width | 60 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.375 in |
| Left Leg Height | 12 in |
| Right Leg Height | 14 in |
| Height Difference | 8.5 in |
| Usable Ramp Length | 71.75 in |
| Usable Ramp Width | 55 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 164.0000 lb |
| Dimensions L x W x H (in.) | 72.0 x 60.0 x 0 in |
