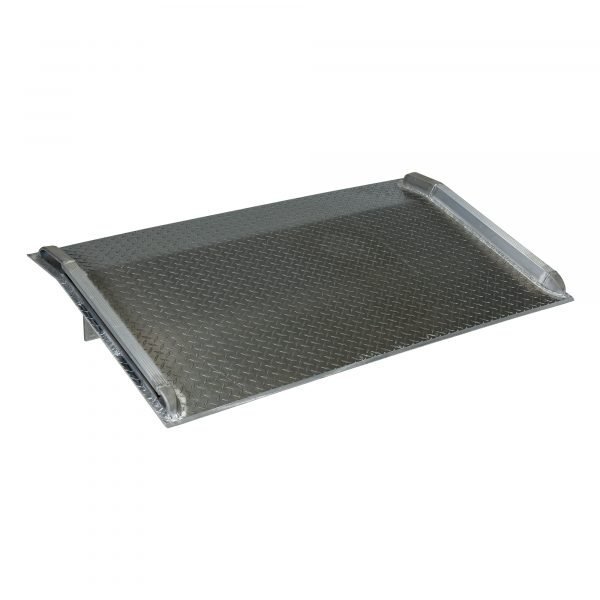

Vestil BTA-05006030 5K Aluminum Dockboard (60in. Wide x 30in. Long)
In Stock
$335.00
In Stock
Vestil BTA-05006030 5K Aluminum Dockboard delivers a 5,000lb capacity in a 60-inch wide by 30-inch long size, optimized for narrow bays and minimal gaps.
- Robust 5,000lb Industrial Rating: High-strength aluminum handles heavy industrial machinery and freight.
- Narrow 60″ Width: Perfect for tight dock configurations and smaller delivery vehicles.
- Safety Side Rails: Painted high-visibility yellow to guide operators and ensure safe transit.
- Locking Safety Legs: Essential for preventing the dockboard from moving during usage.
- Beveled Edge Design: Protects wheels and prevents jarring of sensitive cargo during transport.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 60 X 30 and usable dimenions of 55-3/4 X 30. This dockboard is rated at a 5000 lbs. capacity.
| Item# | 4223607 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 72.0 lbs |
| Capacity | 5,000 lb |
| Ramp Length | 30 in |
| Ramp Width | 60 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.25 in |
| Left Leg Height | 7 in |
| Right Leg Height | 8 in |
| Height Difference | 3 in |
| Usable Ramp Length | 30 in |
| Usable Ramp Width | 55.75 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 65.0000 lb |
| Dimensions L x W x H (in.) | 30.0 x 60.0 x 11.0 in |
