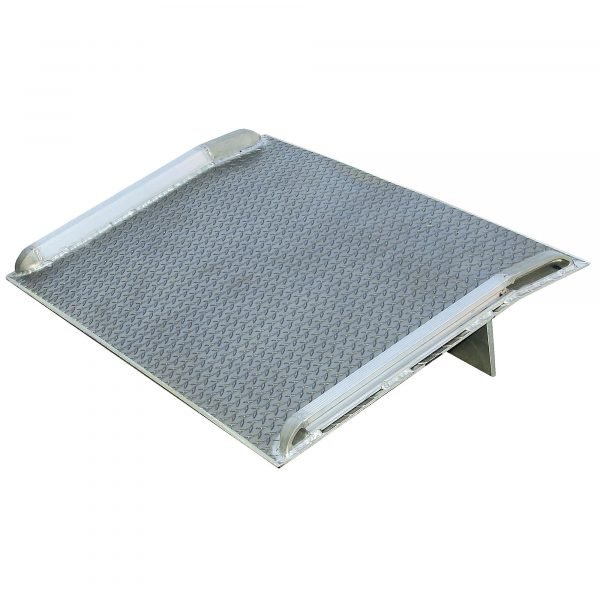

Vestil BTA-08007260 8,000 lbs Aluminum Dockboard (72 in W x 60 in L)
In Stock
$864.00
In Stock
The Vestil BTA-08007260 is a versatile and reliable 8,000 lbs Aluminum Dockboard (72 in W x 60 in L), offering excellent width and length for general-purpose high-capacity loading operations. This fixed dockboard is a fundamental component for maintaining a safe and smooth flow of goods between the warehouse and the trailer. The Vestil BTA-08007260 ensures long-term durability and superior performance; compare it with our Edge-O-Dock Levelers for permanently mounted solutions.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 72 X 60 and usable dimenions of 67 X 59-3/4. This dockboard is rated at a 8000 lbs. capacity.
| Item# | 4219632 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 212.0 lbs |
| Capacity | 8,000 lb |
| Ramp Length | 60 in |
| Ramp Width | 72 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.5 in |
| Left Leg Height | 11 in |
| Right Leg Height | 13 in |
| Height Difference | 7 in |
| Usable Ramp Length | 59.75 in |
| Usable Ramp Width | 67 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 185.0000 lb |
| Dimensions L x W x H (in.) | 60.0 x 72.0 x 0 in |
