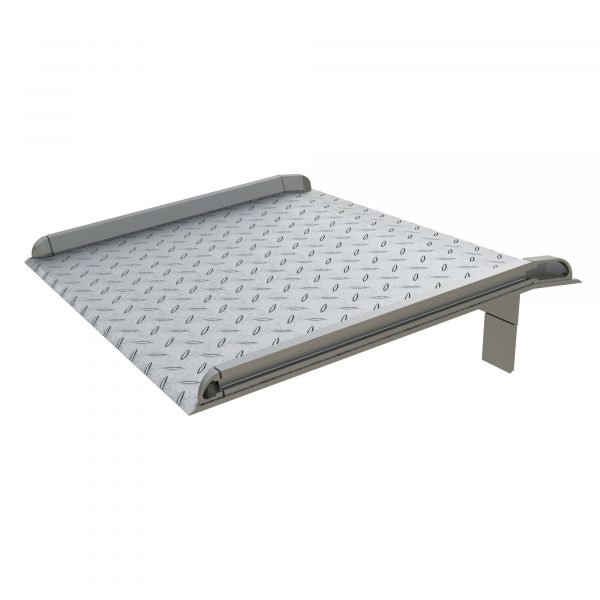

Vestil BTA-12007260 12,000 lbs Aluminum Dockboard (72 in W x 60 in L)
In Stock
$1,043.00
In Stock
Achieve wide, high-capacity dock access with the Vestil BTA-12007260, a robust 12,000 lbs Aluminum Dockboard (72 in W x 60 in L), offering maximum width for safe forklift maneuverability. This fixed dockboard provides reliable strength and a smooth transition, essential for high-volume loading operations. The Vestil BTA-12007260 is an indispensable investment in dock safety and efficiency; compare it with our 13,000 lbs model for an extra capacity cushion.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 72 X 60 and usable dimenions of 66-1/4 X 59-3/4. This dockboard is rated at a 12000 lbs. capacity.
| Item# | 42220490 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 315.0 lbs |
| Capacity | 12,000 lb |
| Ramp Length | 60 in |
| Ramp Width | 72 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.5 in |
| Left Leg Height | 11 in |
| Right Leg Height | 13 in |
| Height Difference | 7 in |
| Usable Ramp Length | 59.75 in |
| Usable Ramp Width | 66.25 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 315.0000 lb |
| Dimensions L x W x H (in.) | 60.0 x 72.0 x 16.75 in |
