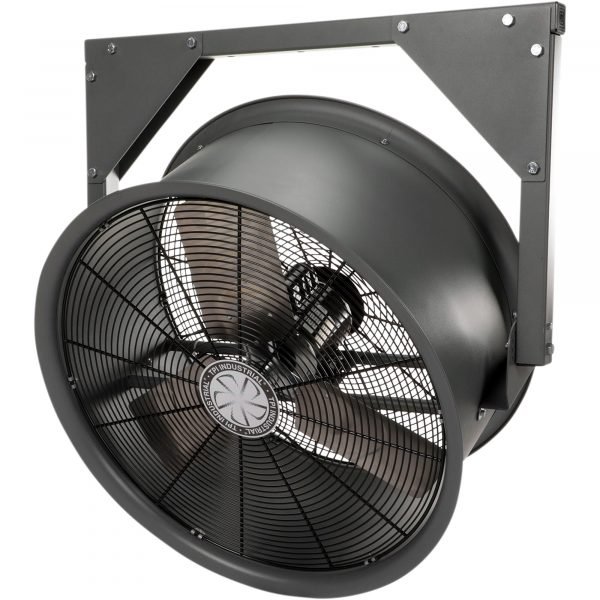

TPI HV30-208-240V High-Velocity Wall Mount Fan (30in, 9000 CFM, 208/240V)
In Stock
$716.00
In Stock
The TPI HV30-208-240V High-Velocity Wall Mount Fan is a large, fixed-mount air mover compatible with versatile commercial power. This 30in fan delivers 9000 CFM and operates on both 208/240V systems. The High-Velocity output provides powerful, consistent air circulation. The TPI HV30-208-240V High-Velocity fan is an excellent solution for large workshops, commercial garages, and assembly halls.
Description
The TPI High Velocity, Wall-Mount, Commercial- Grade Fan is designed for rugged environments. It is ideal for warehouse, material handling, and high-shelf areas for directing high volumes of air flow down aisles, loading dock areas, conveyor systems, processing centers, workstations, jobsites, and many other types of industrial operations in tough environments.

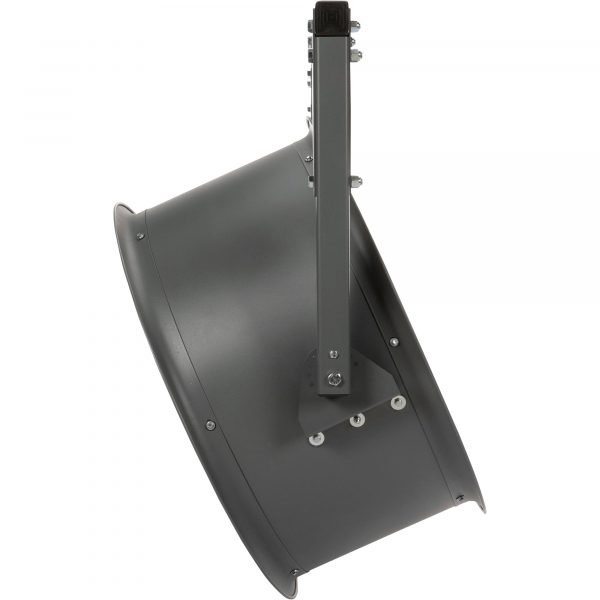

The housing is designed for all types of air circulating applications to provide directional, high velocity airflow. The built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations. Front and rear spiral wound grills are OSHA approved and have a black powder-coated finish. Shipped fully assembled and ready for hard-wired connections. The Totally Enclosed Air-Over (TEAO) motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments. Rated up to 115° F max ambient temperature.
What’s Included
- (1) Fan
| Item# | 99730 |
| Brand | TPI |
| Manufacturer’s Warranty | 2 year commercial limited |
| Ship Weight | 95.0 lbs |
| Fan Diameter (in.) | 30 |
| Air Delivery (CFM) | 9,000 |
| Volts | 208/240 |
| Horsepower | 1 |
| Watts | 746 |
| Amps | 4.3 |
| Speeds (qty.) | 1 |
| Product Weight | 90 lb |
| Dimensions L x W x H (in.) | 16 x 38.9 x 39 in |
