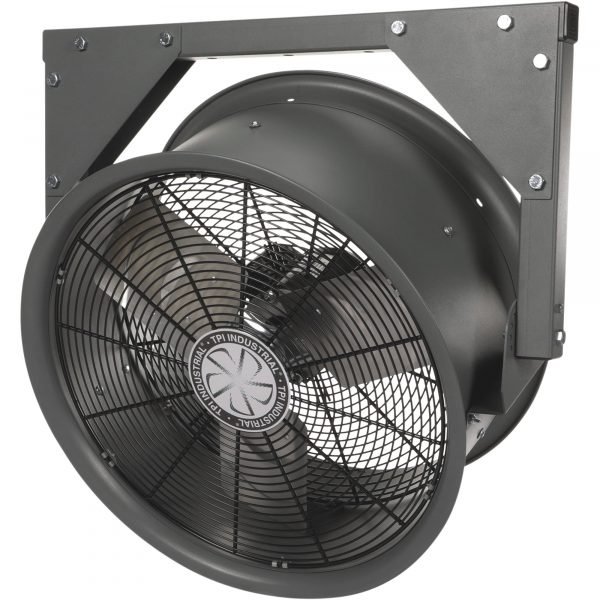

TPI HV24-277V High-Velocity Industrial Fan (24in, 5290 CFM, 277V)
In Stock
$495.00
In Stock
The TPI HV24-277V High-Velocity Industrial Fan is a powerful air mover optimized for commercial lighting circuits. This 24in fan delivers 5290 CFM of focused air flow and operates efficiently on 277V power, often found in large commercial buildings and warehouses. The High-Velocity design ensures excellent air throw and cooling distance. The TPI HV24-277V High-Velocity fan is a great solution for general ventilation and spot cooling in facilities running high-voltage lighting systems.
Description

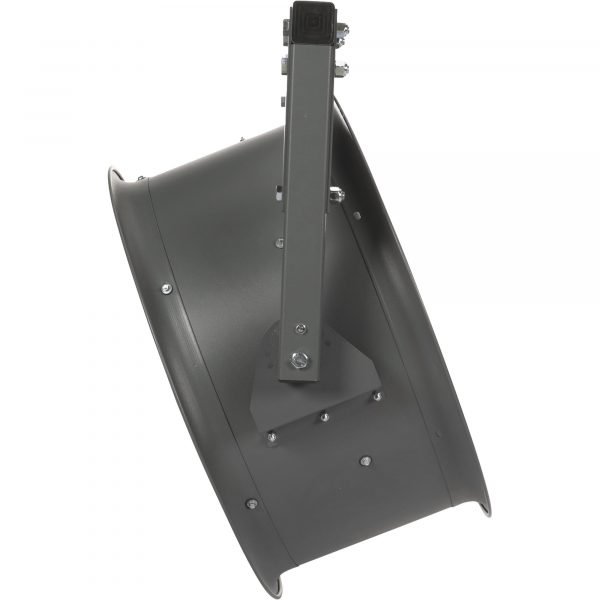

The TPI HV Series Industrial High-Velocity Fan is ETL C/US listed for indoor spot cooling applications. It is ideal for warehouse, material handling, and high-shelf areas for directing high volumes of airflow down aisles, loading dock areas, conveyor systems, processing centers, workstations, jobsites, and all types of industrial operations and rugged environments. Its 20-gauge all-steel housing with gray epoxy powder-coated finish is designed to last. The heavy-duty yoke mounting bracket design features a 2in. square steel tubing frame.
The direct drive, totally enclosed air-over (TEAO), single-speed motor generates up to 5290 CFMs. The ball bearing, with split capacitor, is permanently lubricated. The motor operates on 60HZ and 1725 RPMs, and requires hard-wired connection to the supplied electrical enclosure is located on the motor housing. Aluminum 3-paddle blade system includes steel hub and cast aluminum spider connections and an 24in. non-oscillating fan head.
What’s Included
- (1) High-velocity blower
| Item# | 99664 |
| Brand | TPI |
| Manufacturer’s Warranty | 2 year commercial limited |
| Ship Weight | 68.0 lbs |
| Fan Diameter (in.) | 24 |
| Air Delivery (CFM) | 5,290 |
| Volts | 277 |
| Horsepower | 1/2 |
| Watts | 373 |
| Amps | 2.1 |
| Speeds (qty.) | 1 |
| Product Weight | 65 lb |
| Dimensions L x W x H (in.) | 13.5 x 33.31 x 31.43 in |
