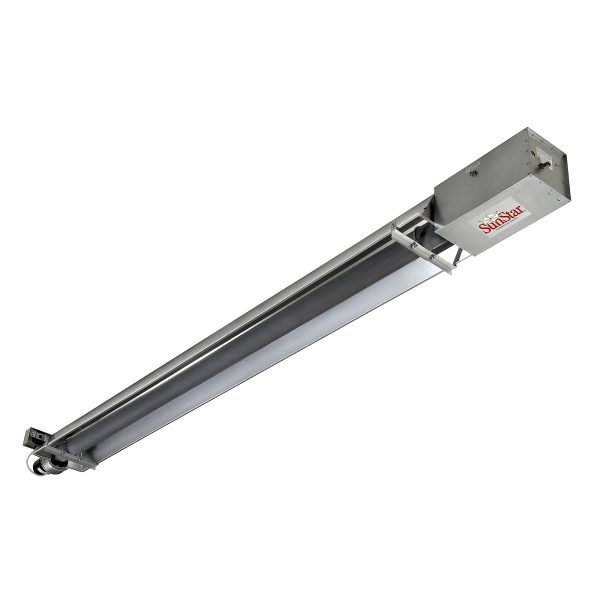

SunStar SIS75-30-TG-L5 Tough Guy Straight Vacuum Infrared Tube Heater 75K BTU
In Stock
$693.00
In Stock
The SunStar SIS75-30-TG-L5 Tough Guy Straight Vacuum Infrared Tube Heater delivers 75,000 BTU along a 30-foot straight tube, combining the high safety of a vacuum system with the renowned durability of the Tough Guy series. This straight configuration is ideal for long, narrow areas where uniform heat distribution is crucial, such as assembly lines or large aisles. The vacuum (negative pressure) operation ensures exceptional heat transfer efficiency and prevents combustion products from leaking into the workspace. The SunStar SIS75-30-TG-L5 Tough heater is a reliable, safe, and cost-effective choice for medium-sized industrial environments requiring resilient, focused radiant heating performance.
Description
Offers fuel savings up to 50%. Tough Guy Straight Tube heaters ideal for complete building heating and can be installed in high humidity or corrosive environments. The emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745384 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 162.0 lbs |
| Fuel Type | Propane |
| Heat Output | 75,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 1,000 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 360 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 129.6000 lb |
| Dimensions L x W x H (in.) | 360.0 x 13.0 x 8.0 in |
