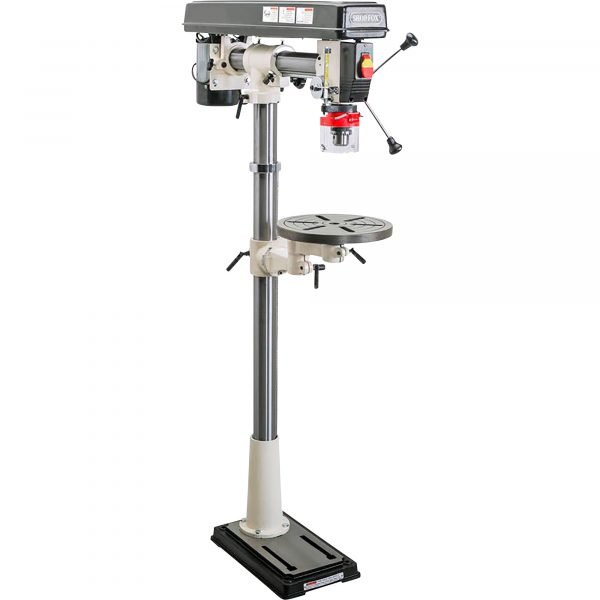

Shop Fox W1670 Radial Drill Press – 1/2 HP
In Stock
$392.00
In Stock
The Shop Fox W1670 Radial Drill Press offers enhanced versatility for drilling large or oddly shaped workpieces. Featuring a Radial Arm that allows the head to move side-to-side and tilt, and powered by a 1/2 HP Motor, it handles drilling tasks beyond a conventional drill press. Ideal for woodworkers and fabricators dealing with oversized material. Choose the unique positioning flexibility, reliable power, and versatility of the Shop Fox Radial Drill Press.
Description
The Shop Fox Radial Drill Press is one of the most versatile and handy drill presses you can add to your shop. Between the tilt of the head and the tilt of the table, you can drill any angle necessary. You can also use it as a horizontal boring machine. Add to this an incredible swing which allows you to bore to the center of a workpiece that is 34in. wide and you have one of the best values available in a drill press. The W1670 Radial Drill Press is capable of a wide variety of drilling and sanding operations. Cannot ship to CA, HI and AK.
What’s Included
- (1) Headstock assembly
- (1) Base column

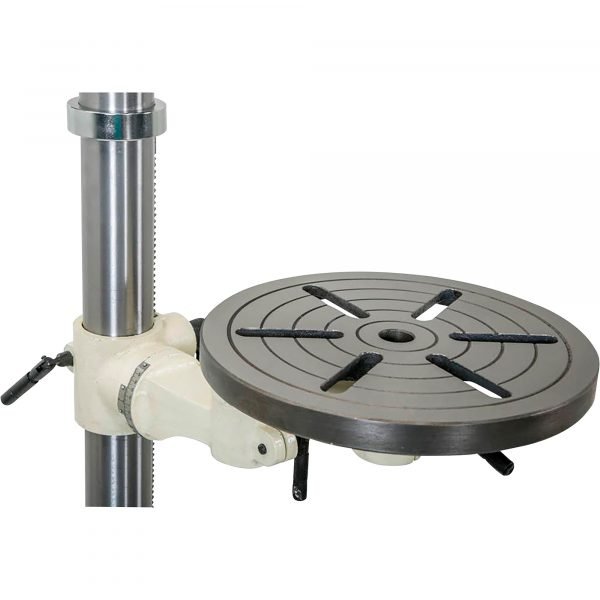

- (1) Table
- (1) Table bracket assembly
- (1) Drill chuck and key spindle
- (1) Set of handles and knobs
- (3) Hex wrenches (3mm, 5mm, 10mm)
- (1) Set of column bolts
- (4) Belt cover knobs and screws
- (1) Lift handle crank
- (1) Pinion gear lock handles
- (4) Rack column rings
- (1) Open end wrench
- (1) Lock lever
- (1) Table support arm bracket
- (2) Hex wrenches (3mm and 5mm)
- (1) Set of mounting hardware
| Item# | 85007 |
| Brand | Shop Fox |
| Manufacturer’s Warranty | 24 months limited parts / No labor |
| Ship Weight | 157.0 lbs |
| Horsepower | 0.5 |
| Volts | 110 |
| Speed (RPM) | 1,725 |
| Speeds (qty.) | 5 |
| 360° Head Swivel | Yes |
| Swing | 33 1/2 in. |
| Drilling Capacity (in.) | 1/2 (mild steel) |
| Chuck Size | 1/16–5/8 |
| Max. Spindle Distance | Spindle to base: 49, spindle to table: 31 1/2 |
| Light Included | No |
| Stand Included | No |
| Dimensions L x W x H (in.) | 32 x 14 x 64 1/2 |
