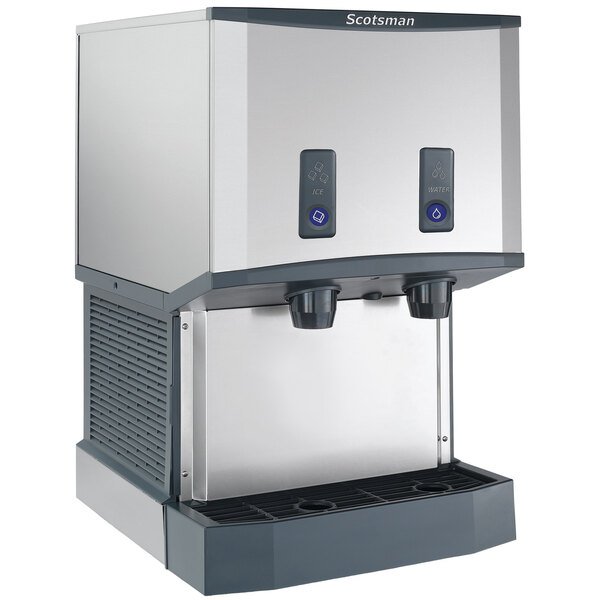

Scotsman HID525WB-1 – Water Cooled Ice Dispenser 25 lb

Scotsman HID525WB-1 – Meridian™ Water-Cooled Countertop Ice & Water Authority (25 lb Storage)

The Scotsman HID525WB-1 is a professional-grade water-cooled dispenser designed for facilities that need high output but have limited vertical clearance. Sourcing Scotsman Meridian technology provides your workspace with 500 lbs of daily production and 25 lbs of storage. Look, truth is, the HID525WB is the “Compact Resilience Specialist”; it delivers the same massive daily production as the 540 series but in a 6-inch shorter chassis, making it the definitive choice for under-cabinet countertop installations in hot clinical laboratories.

Precision Fluid Logic & Quiet Cooling Dynamics

The Scotsman HID525WB-1 utilizes specially designed contoured augers and stainless steel evaporators to achieve maximum ice quality consistency. This versatile ice hub features a 21-inch wide footprint and a water-cooled condenser that eliminates the noise of high-velocity fans. The ROI is found in its “Operational Comfort”; by removing fan noise and heat exhaust, it creates a better working environment for staff while ensuring that the soft, chewable nugget ice is always available for patient comfort or guest hydration.

Technical Specifications

• Daily Production: Up to 500 lbs (227 kg) of H2 Nugget ice.
• Storage Capacity: 25 lbs (11 kg) integrated insulated storage bin.
• Condenser Type: Water-Cooled (Independent of ambient air temperature).
• Electrical Specs: 115V / 60Hz / 1-Phase; 9.0 Amps (NEMA 5-15P).
• Maintenance: Tool-less removable bin and sink for rapid cleaning.
• Dimensions: 21.25″ W x 24.38″ D x 35.0″ H.

Scotsman HID525WB-1 Application & In The Box

• Ideal For: Compact clinical labs, dental offices, and high-heat coffee bars.
• In The Box: HID525WB-1 Unit, Drip Tray Assembly, and Technical Startup Guide.
