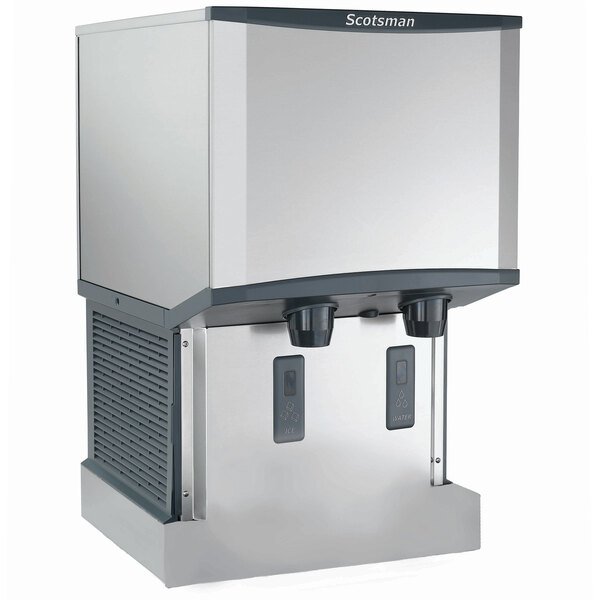

Scotsman HID525AW-1 – Wall Mount Ice Water Dispenser

Scotsman HID525AW-1 – Meridian™ Wall-Mount Air-Cooled Ice & Water Suite

The Scotsman HID525AW-1 is a professional wall-mounted ice and water dispenser designed for medical and high-end office environments that require a slim, elevated hydration solution. Sourcing Scotsman Meridian technology provides your workspace with 500 lbs of daily production and 25 lbs of storage. Look, truth is, the HID525AW-1 is the “Surgical Space Specialist”; it offers the same high output as its floor-standing counterparts but utilizes wall-mount logic to keep floors clear for easy cleaning and high-traffic flow in clinical nursing stations.

Infection Control & Precision Fluid Logic

The Scotsman HID525AW-1 utilizes AgION® antimicrobial protection and Sensor-activated dispensing (available on specific sub-models) to achieve unrivaled patient safety. This wall-mounted ice hub features a unique sink-and-drain design that prevents splash-back and standing water. The ROI is realized through “Sanitation Compliance”; the unit is engineered for rapid descaling and sanitization with an easy-access front panel, ensuring your facility remains compliant with health codes while providing the industry’s most preferred nugget ice texture.

Technical Specifications

• Daily Production: Up to 500 lbs (227 kg) of H2 Nugget ice.
• Storage Capacity: 25 lbs (11 kg) integrated storage bin.
• Cooling System: Air-cooled refrigeration with front-breathing design.
• Electrical Specs: 115V / 60Hz / 1-Phase; 9.0 Amps (NEMA 5-15P).
• Wall Clearance: Requires reinforced wall support for ~200 lbs operating weight.
• Dimensions: 21.25″ W x 24.38″ D x 35.0″ H.

Scotsman HID525AW-1 Application & In The Box

• Ideal For: Hospital patient zones, university fitness centers, and corporate pantries.
• In The Box: HID525AW-1 Unit, Heavy-Duty Wall Mounting Kit, and Technical Manual.
