Rolair H20312K100 Air Compressor – 20HP 120Gal

Description

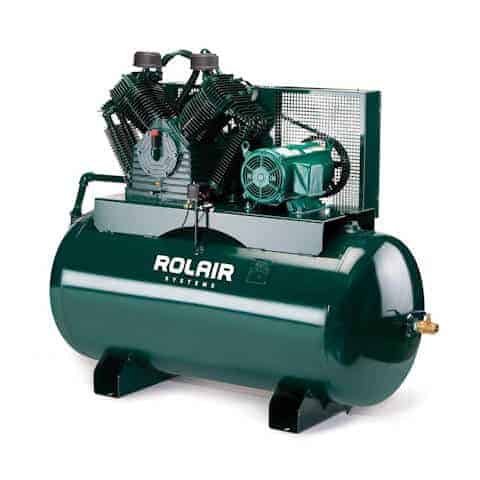

Rolair H20312K100 20HP 120 Gallon Compressor

The Rolair H20312K100 is an elite two-stage stationary electric compressor engineered for high-volume manufacturing and heavy industrial production. Featuring a high-torque 20HP three-phase motor and a 120-gallon horizontal ASME tank, this unit delivers 58.4 CFM at 175 PSI. It is specifically designed for facilities requiring a constant air supply for automated machinery, large-scale assembly lines, and high-demand sandblasting operations.

Operational efficiency is optimized by an 1800 RPM open drip-proof motor and a four-cylinder pump assembly designed for superior cooling. Relying on industrial reciprocating air compressors like the H20 series ensures a stable and cool air supply, thanks to the aluminum head and Swedish lamellar reed valves that facilitate rapid thermal transfer and consistent pressure regulation.

Rolair H20312K100 Key Features

• Tank Size: 120 Gallon Horizontal
• Lubrication: Splash Lubricant System
• Starting System: Loadless Auto-Start
• Fuel System: 208/230/460V Three Phase
• Max Pressure: 175 PSI Rating
• Air Displacement: 75.8 CFM Displaced
• Warranty: 1 Year Warranty

Industrial Safety and Design

The 120-gallon horizontal tank is powder-coated and manufactured to meet strict ASME National Board certification standards for high-pressure safety. The unit includes a heavy-duty brass shut-off valve, a 0-300 PSI pressure gauge, and a multiple V-belt drive for efficient power transfer. These features are paired with an automatic unloading device to ensure smooth, loadless starts, protecting the motor during frequent cycling.

Manufacturing and Fleet Service

Perfectly suited for large automotive service centers, fleet maintenance bays, and industrial woodworking shops, this model provides a dependable stationary air source. The 120-gallon reserve acts as a significant buffer, reducing motor wear and preventing pressure drops during peak demand periods. Facility managers appreciate the H20312K100 for its legendary durability and its ability to power an entire pneumatic infrastructure.

Trust the Rolair H20312K100 to provide a stable and high-capacity air solution for your industrial production requirements. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
