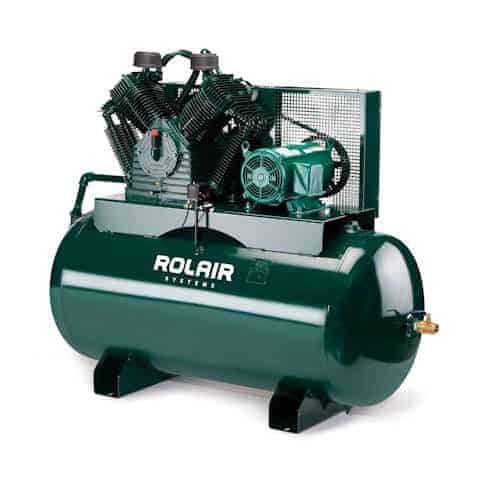

Rolair H15320K100 Air Compressor – 15HP 200Gal
In Stock
$4,476.00
In Stock
Rolair H15320K100 Air Compressor is a 15 HP electric 175 PSI stationary unit featuring a massive 200-gallon horizontal tank for high-voltage 460V industrial production.
Extreme Flow Output: Delivers 50 CFM @175PSI.
Massive Horizontal Tank: Provides 200-gallon air reserve.
Full Cast Iron: Ensures maximum thermal stability.
Three Phase Power: Supports reliable 460V.
Large Scale Production: Supports continuous industrial demand.
Description
Rolair H15320K100 15HP 200 Gallon Compressor
The Rolair H15320K100 is a high-output two-stage industrial compressor engineered for large-scale workshops and medium manufacturing facilities. This 15HP unit is paired with a 200-gallon horizontal tank to deliver a consistent 47.3 CFM at 175 PSI. It provides the heavy-duty air storage and pressure necessary for high-consumption tools, pneumatic lifts, and automated processing equipment in a stationary industrial setting.
Performance efficiency is optimized by an 1800 RPM open drip-proof motor and a four-cylinder pump assembly designed for low-noise operation. Relying on industrial reciprocating air compressors like the H15 series ensures a robust supply of cool, dry air, thanks to the aluminum head design and Swedish lamellar reed valves that facilitate rapid thermal transfer.
Rolair H15320K100 Key Features
- Tank Size: 200 Gallon Horizontal
- Lubrication: Splash Lubricant System
- Starting System: Square D Pressure Switch
- Fuel System: 208/230/460V Three Phase
- Max Pressure: 175 PSI Rating
- Air Displacement: 60.7 CFM Displaced
- Warranty: 1 Year Warranty
ASME Certified Safety System
The 200-gallon horizontal tank is powder-coated and manufactured to meet strict ASME National Board certification standards for high-pressure safety. The unit includes a heavy-duty brass shut-off valve, a 0-300 PSI pressure gauge, and a totally enclosed steel belt guard for operator protection. These safety features are paired with an automatic unloading device for smooth, loadless starts every time.
Industrial Fleet and Service Bays
Perfectly suited for fleet maintenance bays, large-scale automotive service centers, and industrial woodworking shops, this model provides a dependable stationary air source. The large air reserve allows for continuous tool operation during peak demand periods without the risk of pressure drops. Maintenance is simplified through an oil sight gauge and a replaceable canister-style intake filter element.
Trust the Rolair H15320K100 to provide a stable and high-capacity air solution for your industrial production requirements. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Rolair H15320K100 Air Compressor – 15HP, 200 Gallon Tank, 3 Phase
| Weight | 1395 lbs |
| Dimensions | 76 × 36 × 64 in |
| Brand | Rolair |
| Model | H15320K100 |
| Compressor CFM | 47.3 |
| Compressor CFM Range | 45 – 79.9 |
| Compressor Horsepower | 15 HP |
| Horsepower Range | 10 – 20 HP |
| Compressor Tank Size | 200 Gallon |
| Tank Size Range | 90-200 Gallon |
| Compressor PSI | 175 PSI |
| Voltage | 208/3/60, 230/3/60, 460/3/60 |
| Cooling | Included |
