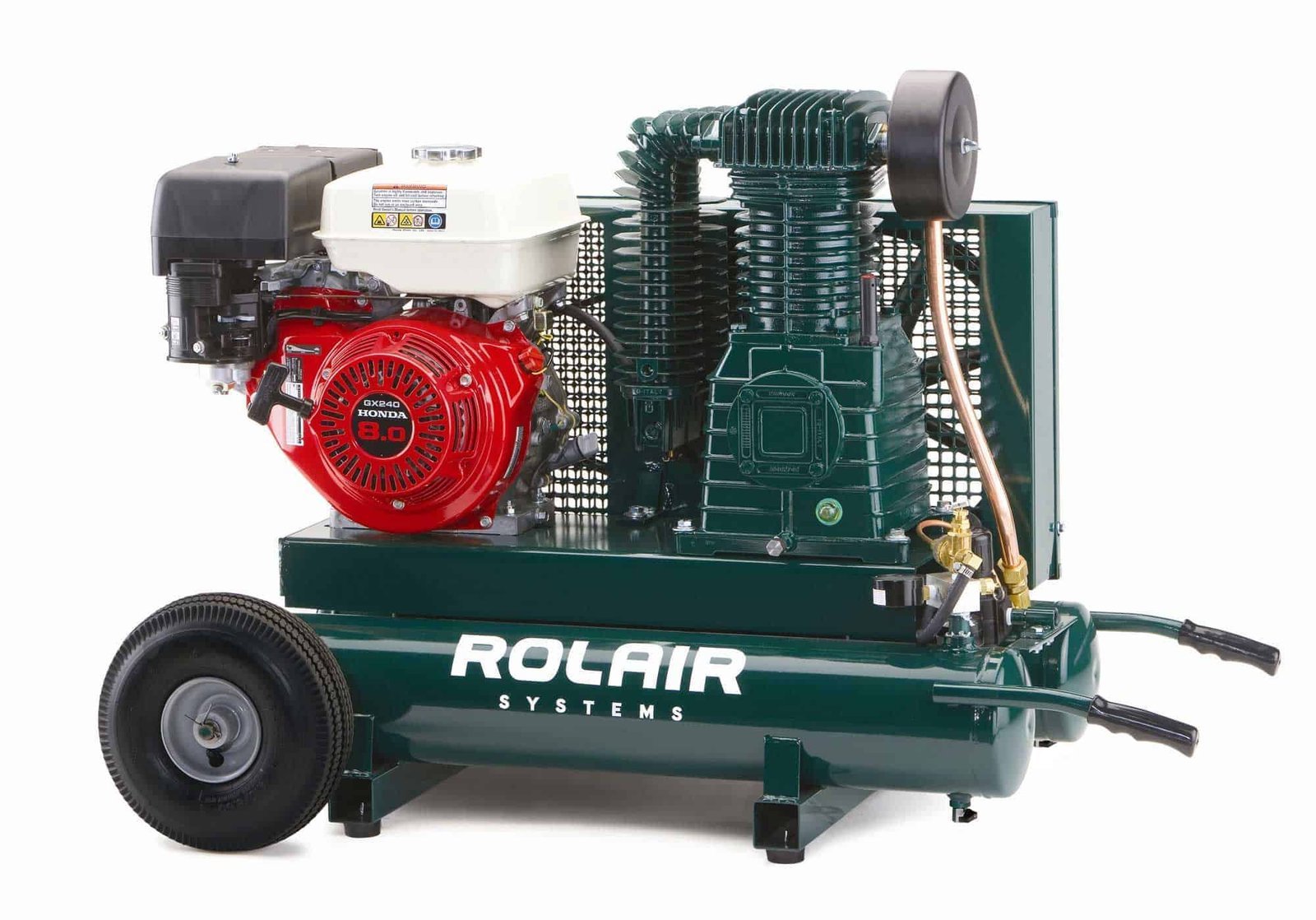

Rolair 8422HK30 Air Compressor – 9HP 9Gal

Rolair 8422HK30 Air Compressor – Remote Jobsite Dominator

The Rolair 8422HK30 Air Compressor – 9HP 9Gal is the primary choice for framing crews who refuse to let electrical grid limitations stall their production. By pairing the legendary 270cc Honda GX engine with a high-displacement pump, this wheelbarrow unit offers unrivaled CFM recovery for multi-operator teams. This is a critical asset for professional jobsite air compressors designed to survive the dust and debris of new construction zones.

Rolair 8422HK30 Technical Specs

• Tank Capacity: 9 Gallon (Wheelbarrow)
• Lubrication Type: Splash Lubricated Pump
• Motor Rating: 9HP Honda GX270
• Power Specs: Gasoline Engine Driven
• Pressure Max: 135 PSI Limit
• Air Delivery: 20.1 CFM @ 90 PSI
• Warranty: 1-Year Factory Terms

Rugged Field-Proven Casting

This unit features cast-iron pump cylinders that won’t warp or lose compression under the high-temperature stress of non-stop summer roofing jobs. The drive system is shielded by a fully enclosed metal guard, protecting the belts from jobsite impact and incidental contact. Rolair’s low-RPM pump design ensures that internal heat is minimized, significantly extending the life of the Swedish Steel valves.

Optimized Mobile Serviceability

Technicians can perform rapid field oil changes thanks to the strategically placed drain ports on both the Honda engine and the pump. The twin 9-gallon tanks are equipped with industrial ball-valve drains, preventing the rust-through issues common in lower-tier portable units. The integrated pilot valve comes factory-calibrated to ensure immediate pressure response when the crew starts firing multiple nailers.

Honda OHV Fuel ROI Strategy

The 9HP Honda engine utilizes overhead valve technology to squeeze maximum runtime out of every gallon of fuel. An automatic idle control system reduces engine RPM during periods of low demand, cutting both noise pollution and mechanical wear. This fuel-conscious design provides a superior return on investment for contractors managing tight jobsite budgets.

Professional Framing & Roofing Use

This gas-powered beast is the standard for high-volume framing where four or more pneumatic guns are running simultaneously. Its low-profile wheelbarrow frame is designed for easy truck loading and superior balance when navigating narrow residential walkways. The heavy-duty pneumatic tire acts as a shock absorber, protecting the engine-to-pump alignment during transport across rough terrain.

The Rolair 8422HK30 Air Compressor – 9HP 9Gal provides the portable pneumatic muscle needed for heavy-duty field work. Request your technical quote now at Muldepot.com.
