Rolair 20GRBMHK60 Air Compressor – 20HP Base Mount

Description

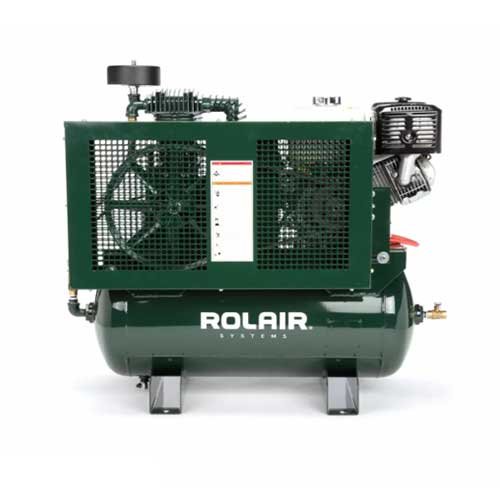

Rolair 20GRBMHK60 20HP Base Mount Compressor

The Rolair 20GRBMHK60 is a high-output gasoline-powered base-mount compressor designed for seamless integration into service vehicle bodies and specialized machinery skids. Driven by a 20HP Honda GX630 engine, this unit delivers a potent 33.7 CFM at 175 PSI. This base-mounted configuration is ideal for applications where space is at a premium or where an external air receiver is already integrated into the vehicle’s chassis.

Mechanical reliability is secured through a two-stage, splash-lubricated pump featuring cast-iron cylinders and Swedish lamellar reed valves for maximum efficiency. Selecting industrial reciprocating air compressors like the 20GR series ensures a high volumetric efficiency ratio, providing the cool, dry air needed for high-demand pneumatic tools without the added weight of an integrated tank.

Rolair 20GRBMHK60 Key Features

• Tank Size: Base Mount Configuration
• Lubrication: Splash Lubrication System
• Starting System: Electric Start Honda
• Fuel System: Gasoline Honda GX630
• Max Pressure: 175 PSI Rating
• Air Displacement: 41.0 CFM Displaced
• Warranty: 1 Year Limited

Modular Service Skid Design

The unit features a heavy steel base plate and a totally enclosed steel belt guard, making it ready for bolt-down installation on service trucks or mobile power units. It includes an automatic pilot valve operation and a Schmidt belt tightening device to simplify maintenance in field environments. The Honda GX630 engine provides an integrated alternator and a low-oil shutdown feature to protect the system during long operational hours.

Specialized Mobile Maintenance

Ideally suited for custom mobile repair units, bridge painting skids, and agricultural service trucks, this base-mount model offers maximum installation flexibility. The aluminum head and crankcase facilitate rapid heat dissipation, ensuring the pump remains cool even during continuous-duty field work. Technical technicians value the 20GRBMHK60 for its compact footprint and the massive airflow provided by its 20HP power plant.

Equip your custom service machinery with the rugged power and modular efficiency of the Rolair 20GRBMHK60 base-mount compressor. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
