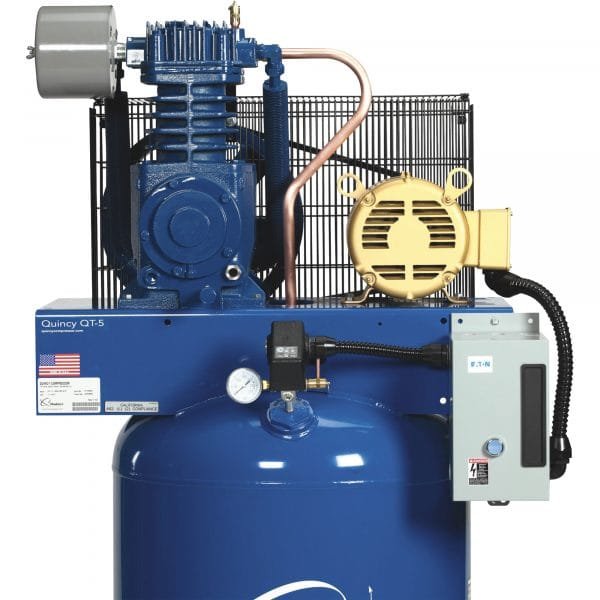

Quincy QT-5 253DS80VCB23 Air Compressor – Splash Lube
In Stock
$1,356.00
In Stock
Quincy QT-5 253DS80VCB23 Air Compressor is a 5.0 HP splash-lubricated 175 PSI system utilizing an 80-gallon vertical tank for reliable 230V three-phase workshop air delivery.
Optimal Air Delivery: Supplies 17.2 CFM @175PSI.
Vertical Orientation Design: Minimizes industrial floor footprint.
Cast Iron Construction: Ensures maximum mechanical reliability.
Three Phase Source: Operates on 230V.
Professional Workshop Use: Extends pneumatic equipment life.
Quincy QT-5 253DS80VCB23 Splash Lubricated Reciprocating Air Compressor
| Model | 253DS80VCB23 |
| Brand | Quincy |
| Warranty | 5-year |
| Ship Weight | 680.0 lbs |
| Horsepower | 5 |
| Air Tank Size | 80 |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 17.7 |
| Max. PSI | 175 |
| CFM at Max. PSI | 17.4 |
| Working Pressure | 145–175 |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 3/4 |
| Motor RPM | 1,750 |
| Motor Phase | 3 |
| Amps | 28 |
| Duty Cycle | 100 % |
| Pump Life | 50,000 |
| Pump Material | Cast iron cylinder, aluminum head |
| Noise Level (dB) | 78 |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Drain Type | Manual |
| Weight (lbs.) | 680 |
| Dimensions L x W x H (in.) | 37 x 24 x 74 |
