Quincy 3153D12HCB23M Air Compressor – 15HP 120Gal

Description

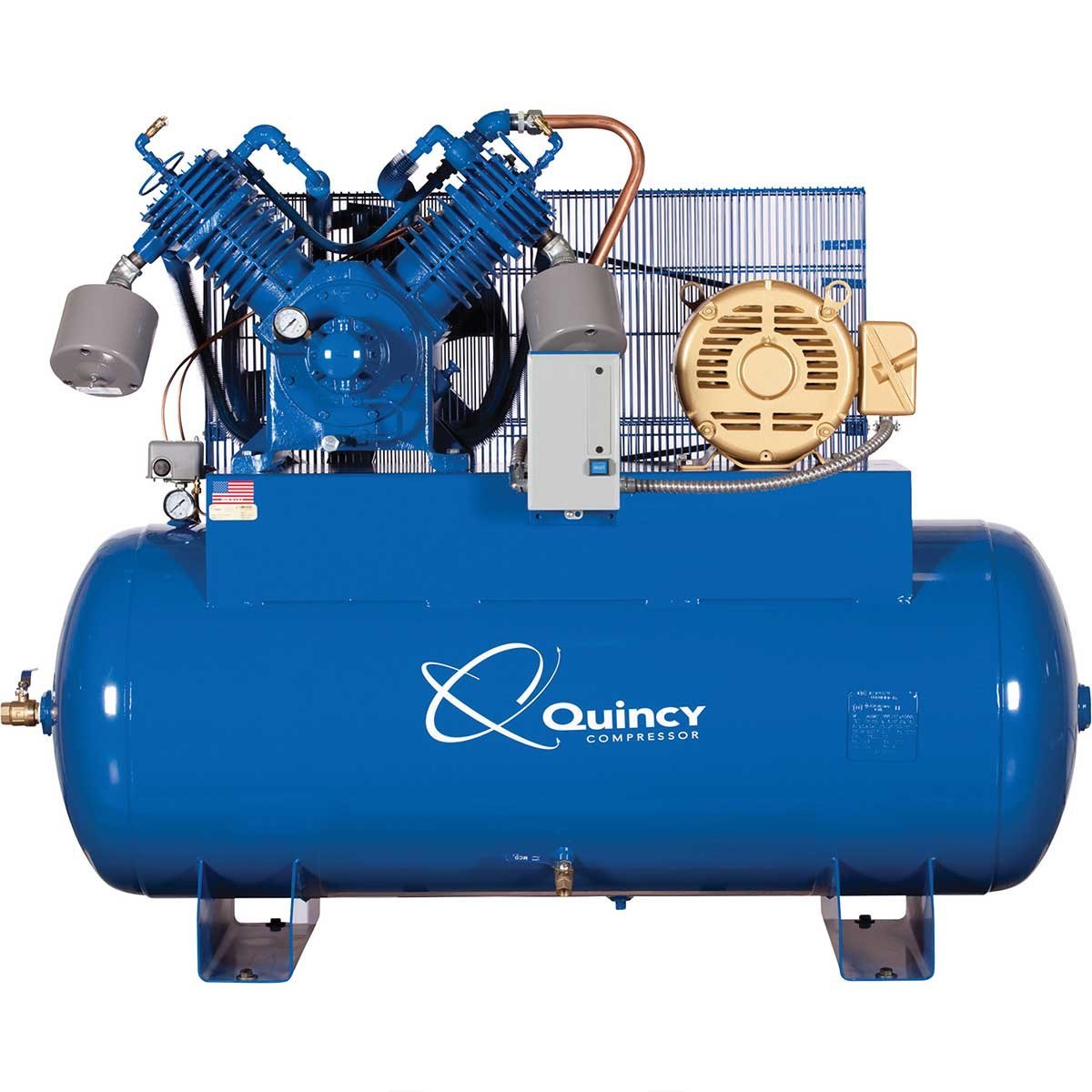

Quincy 3153D12HCB23M 15HP 120 Gallon Compressor

The Quincy 3153D12HCB23M is a premier industrial reciprocating compressor from the legendary QR-25 series, engineered for the most demanding 24/7 continuous duty applications. Driven by a massive 15HP motor on a 120-gallon horizontal tank, this unit is designed for heavy industrial production, providing unmatched reliability and a service life measured in decades rather than years.

Technical performance is optimized via a pressure-lubricated pump that features a manual unloader for easy starting and an oil pump for consistent lubrication to all internal components. Choosing industrial reciprocating air compressors from Quincy’s elite lineup ensures the lowest total cost of ownership due to the heavy-duty rebuildable design and superior thermal management of the cast-iron pump.

Quincy 15HP Key Features

• Tank Size: 120 Gallon Horizontal
• Lubrication: Full Pressure Lubrication
• Starting System: Magnetic Starter Included
• Fuel System: 230V Three Phase
• Max Pressure: 175 PSI Rating
• Air Displacement: 51.0 CFM Delivery
• Warranty: 1 Year Unit

Legendary QR-25 Pump Design

The unit features the world-renowned QR-25 cast-iron pump, which includes a hydraulic unloader and intake loaders to ensure the compressor starts without load. The pressure lubrication system includes an automotive-style oil filter and a low-oil level shutdown switch for maximum component protection. This design is specifically engineered for high-ambient temperatures and grueling industrial environments where failure is not an option.

Heavy Industry and Production

Ideally suited for large manufacturing plants, refineries, and heavy equipment maintenance, this Quincy model offers a high-volume air supply with legendary reliability. The 120-gallon horizontal tank acts as a massive energy reservoir, ensuring stable line pressure during peak demand periods. Industrial engineers value the 3153D12HCB23M for its rebuildable components and its status as the industry standard for durability.

Secure your facility’s air supply with the ultimate reliability and high-output performance of the Quincy 15HP industrial compressor. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
