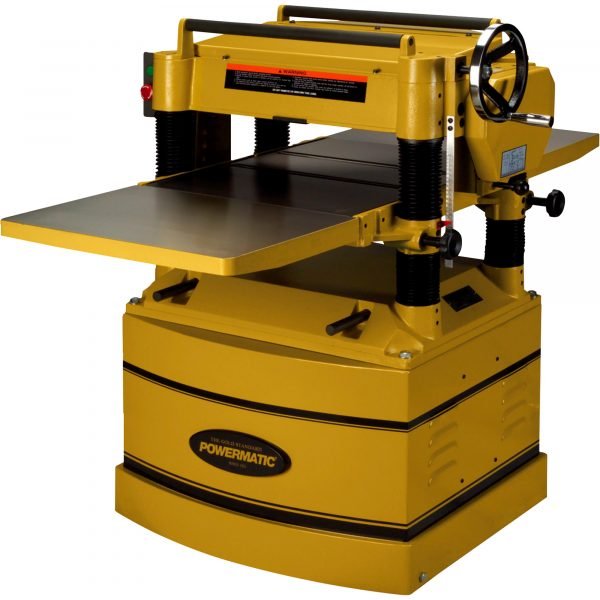

Powermatic 209 4-Speed Planer – 5 HP, 1 PH
In Stock
$1,992.00
In Stock
The Powermatic 209 4-Speed Planer is a robust production planer, offering a 20-inch max width capacity. Powered by a strong 5 HP motor and conveniently wired for Single Phase (1 PH) power, this planer features 4-Speed feed control, allowing the operator to select the optimal speed for rough dimensioning or fine finishing passes. Ideal for cabinet shops and production environments requiring flexibility and power. Choose the versatility, power, and precise feed control of the Powermatic 209 4-Speed Planer for high-quality, large-scale dimensioning.
Description
The Powermatic 4-Speed Planer is a heavy-duty unit that offers high-performance and value. This planer is loaded with features not found in other planers in its class. The powerful 5 HP motor and 20in. planing capacity will handle the most demanding work. The 5in. dust port connects easily to any dust collector. The cutterhead has 4 high speed steel knives and turns at 5000 RPM, producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision-ground and polished cast iron table rides on 4 steel columns, giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
What’s Included
- (1) Powermatic 4-Speed Planer, 5 HP, 1 PH, 230 Volts, Model# 209
| Item# | 84653 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 801.0 lbs |
| Product Type | Planers |
| Max. Cutting Depth | 3/32 in |
| Knives (qty.) | 4 |
| Speed (RPM) | 5,000 |
| Helical Head | No |
| Horsepower | 5 |
| Volts | 230 (1 PH) |
| Amps | 40 |
| Product Weight | 880 lb |
| Dimensions L x W x H (in.) | 26 x 36.63 x 41.4 in |
