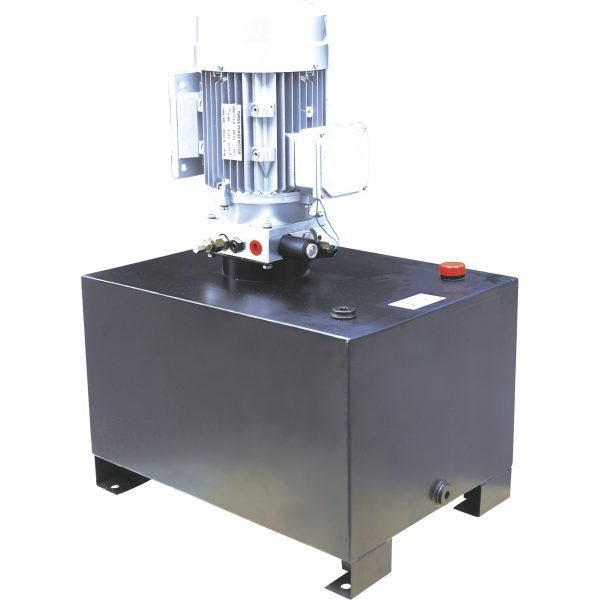

NorTrac LPU-E17P7K2/TKDBZ1 AC Power Unit 21-Gal. Reservoir 230/460V
In Stock
$640.00
In Stock
Power large stationary hydraulic systems with the commercial-grade NorTrac AC Power Unit. This robust unit features a large 21-Gallon Reservoir and operates on high-voltage 230/460V AC power. Ideal for industrial applications such as lifts, presses, and large shop machinery, the NorTrac AC Power Unit provides powerful, continuous hydraulic flow and pressure.
Description
This NorTrac Industrial AC Power Unit features a heavy-duty electric motor for long life. The 230/460V pressure-balanced, high-efficiency gear pump is high speed with a high flow rate. Has a 21-gal. reservoir tank that can be used for lift-hold-lower functions, or pressure and return port only by removing solenoid valve and installing return port plug assembly. Ideal for use with lift tables, scissor lifts, aerial work platforms, and other industrial and logistic applications.
What’s Included
- (1) AC power unit
- (1) Return port plug adapter
Product Manual Line Drawing
| Item# | 53452 |
| Brand | NorTrac |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 160.0 lbs |
| Flow (GPM) | 7.8 |
| Max. PSI | 2,000 |
| Max. RPM | 1,800 |
| Inlet Port (in.) | Tube |
| Outlet Port (in.) | 3/4–16UNF |
| Reservoir Capacity | 21 gal. |
| Volts | 230/460 |
| Phase | 3 |
| Net Power Output (HP) | 7.5 |
