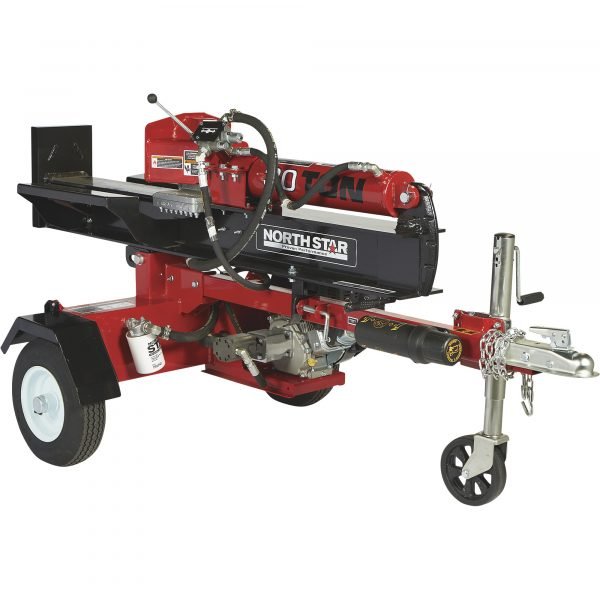

NorthStar 24-Ton Log Splitter H/V 177cc Kohler CH255 Engine
In Stock
$917.00
In Stock
The NorthStar 24-Ton Log Splitter is an ideal machine for reliable and efficient firewood processing. Delivering 24 tons of force, this unit features a dependable 177cc Kohler CH255 Engine and easily switches between Horizontal and Vertical splitting positions. The NorthStar 24-Ton Splitter provides the perfect balance of splitting power, easy maneuverability, and durability for landowners and home use.
Description
This NorthStar Horizontal/Vertical Log Splitter’s multi-patented design gives you premium components and exclusive features that let you save time, increase performance and work effectively. You can count on NorthStar to bring strength, durability and innovation every time. The backbone of this log splitter is an industrial-strength I-beam with heavy plate steel reinforcement. The patented wedge design, made with alloy steel, maintains consistent split and has a unique curve that reduces initial contact area for maximum penetrating force. Add the optional NorthStar Wedge Wings (Item# 110910, sold separately) to make each stroke more efficient. Auto-return wedge saves time and effort when splitting.
The premium hydraulic system is protected by a quad filtering system that uses four different components to protect the hydraulic system from contaminants. Large hydraulic oil reservoir allows fluid to cool, reducing wear and allowing fluid to last longer. Slide-action self-leveling pivot makes it simple to switch between horizontal and vertical split. Designed to be easy to use in both orientations. Some assembly required
What’s Included
- (1) Log splitter
| Item# | 1109002 |
| Brand | NorthStar |
| Manufacturer’s Warranty | 4 year limited warranty |
| Ship Weight | 600.0 lbs |
| Product Type | Horizontal/vertical splitter |
| Ram Force (Tons) | 30 |
| Max. Log Size L x W (in.) | 25 x 16 |
| Continuous Force (Tons) | 27.8 |
| Engine | Kohler commercial CH270 |
| Horsepower | 12.7 |
| Engine Displacement | 203 |
| Gross Torque | 10.5 ft. lbs. at 3,000 RPM |
| Low Oil Shutdown | Yes |
| Wedge | 8 1/2 in.H |
| Cycle Time (sec.) | 14 |
| Automatic Cylinder Return | Yes |
| Cylinder | 4 1/2 x 24 |
| Pump | 13 GPM |
| Max. PSI | 4,000 |
| Oil Reservoir (gal.) | 0.6 |
| Fuel Capacity (gal.) | 4.2 |
| Hoses | High pressure w/wire braid |
| Log Cradle | Tables |
| Log Lift | No |
| Jack Stand | Yes |
| Ball Coupler (in.) | 2 |
| Tire Size | 8 in |
| Lights Included | No |
| Fenders | Included |
| Pre-assembled | No |
| Dimensions L x W x H (in.) | 90 x 45 x 45 in |
| Product Weight | 600 lb |
