NorthStar 157116 Skid PW – Wet Steam 3000 PSI 100Gal
In Stock
$2,208.00
In Stock

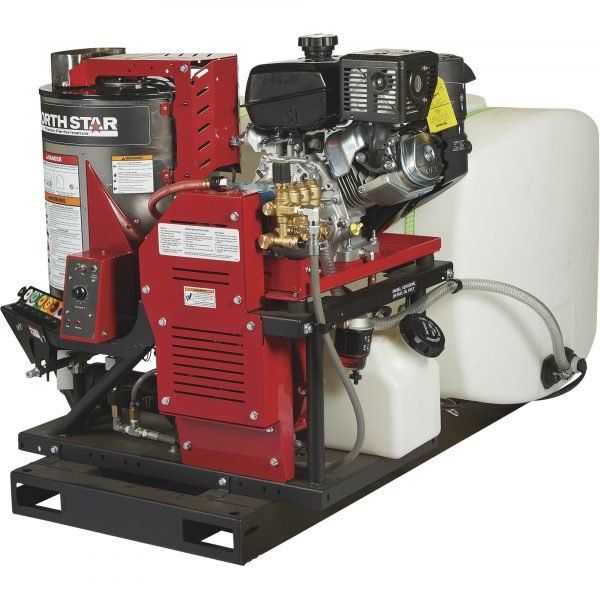

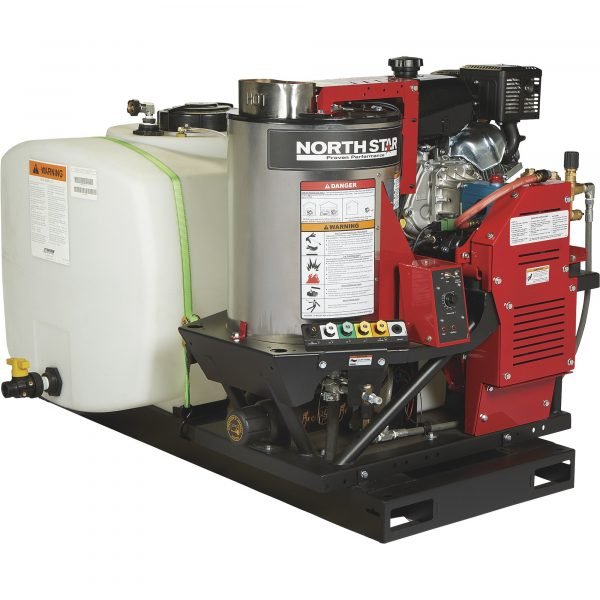

NorthStar 157116 Skid PW Wet Steam 3000 PSI 100Gal This NorthStar 157116 is a massive skid-mounted hot water system featuring a 100-gallon tank designed to provide independent cleaning power for mobile service infrastructures.
Integrated Tank Capacity: Features 100-gallon heavy-duty water storage receiver
Extreme Steam Output: Provides wet steam cleaning at 3,000 PSI
Skid Mount Configuration: Engineered for permanent truck or trailer installation
High Flow Pump: Delivers consistent water volume for demanding tasks
Industrial Burner System: Includes high-efficiency heating coil for rapid temperature
This NorthStar Hot Water Pressure Washer Skid with Wet Steam is loaded with cutting-edge technologies, putting it in a league of its own. With a 250°F wet steam mode, industry-leading 150° temperature rise and a fuel-efficient downdraft burner, it delivers an unbeatable combination of high heat, high-impact and high-flow rate — melt through and wash away the toughest grease and grime. The innovative digital thermostat provides far superior temperature regulation compared to other brands — a stable 15 to 18°F range delivers consistently hot water without significant temperature swings. This heavy-duty unit boasts a Kohler CH440 engine and a Cat direct drive pump for reliable performance. Full-featured 100-gal. water tank lets you tackle jobs even when you are miles from the next water source. Plus, it features auto shutoff to prevent overflowing while filling and includes a low-water shutdown switch to protect the pump from damage if it runs dry.
What’s Included
- (1) Hot water pressure washer with wet steam
- (5) Nozzles
- (1) High-pressure hose
- (1) Spray gun
- (1) Lance
| Item# | 1571161 |
| Brand | NorthStar |
| Manufacturer’s Warranty | 2 Year Limit/3 Year Eng Limit |
| Ship Weight | 615.0 lbs |
| Pressure | 3,000 PSI |
| Flow (GPM) | 4.0 |
| Flow | 4 GPM |
| Engine | Kohler |
| Fuel Capacity (gal.) | 1.61 |
| Engine Model | CH440 |
| Engine Displacement | 429 cc |
| Fuel Type | Gasoline |
| Pump | CAT 66DX |
| Pump Oil Type | SAE 30 nondetergent |
| Pump Oil Included | Yes |
| Engine Oil Type | SAE 30 motor oil |
| Engine Oil Included | No |
| Gun | Quick-connect |
| Low Oil Shutdown | Yes |
| Drive Style | Direct |
| Hose | 3/8in. x 50ft. |
| Coupler Size (in.) | 3/8 |
| Gross Torque | 22.7 ft-lbs. |
| Adjustable Pressure | Yes |
| Cart Included | Skid |
| Chemical Injector | Yes |
| Fuel Capacity for Burner (gal.) | 5 |
| Fuel Type (Burner) | Diesel, kerosene, fuel oil |
| Max. Inlet Water Temp (°F) | 140 |
| Fuel Capacity | 1.61 Gal |
| Max. Output Water Temp (°F) | 250 |
| Hose Length | 50 ft |
| Steam Capable | Yes |
| Orifice Size | 4.5 |
| Burner Type | Downdraft |
| Coupler Size | 3/8 in |
| Quick Connect Nozzle | Yes |
| Nozzle Type | 15° Wet Steam, 15°, 25°, 40°, and Chemical |
| Max. Inlet Water Temp | 140 °F |
| Max. Outlet Water Temp | 250 °F |
| Thermal Protector | Yes |
| Battery Required | No |
| Battery Included | No |
| Product Weight | 610 lb |
| Dimensions L x W x H (in.) | 47.5 x 61.5 x 47.87 in |
