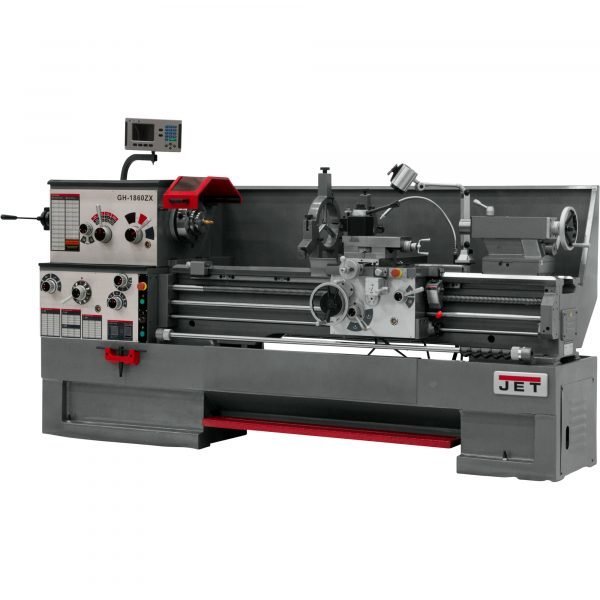

JET GH-1860ZX ZX Lathe – 18x60in, DRO, Taper, Collet Closer
In Stock
$19,263.00
In Stock
The JET GH-1860ZX ZX Lathe is a highly capable machine offering a full array of precision features for long components. With an 18in Swing and 60in Bed, it includes a DRO for accuracy, a Taper Attachment for conical work, and a Collet Closer for fast, high-tolerance bar stock turning. Ideal for sophisticated machine shops and toolmaking. Choose the robust size and complete digital and mechanical precision features of the JET 18x60in Lathe.
Description
This JET ZX Series Large Spindle Bore Lathe with Acu-Rite 203 DRO, Taper Attachment and Collet Closer provides power, precision, efficiency and reliability to any metal shop. A 1-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. 18in. swing over bed, 27 1/2in. swing through gap, 60in. distance between centers, 3 1/8in. spindle bore, 7 1/2 HP, 230/460V, 3-phase motor. Loaded with features and backed by an industry-leading 2-year limited warranty.
What’s Included
- (1) Large spindle bore lathe with Acu-Rite 203 DRO, Taper Attachment and Collet Closer
| Item# | 71288 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 6700.0 lbs |
| Distance Between Centers (in.) | 60 |
| Swing Over Bed (in.) | 18 |
| Volts | 230/460 |
| Horsepower | 7.5 |
| Speed (RPM) | 25–1,800 |
| Spindle Bore (in.) | 3 1/8 |
| Spindle Mount | D1-8 |
| Carriage Travel (in.) | 55 9/16 |
| Thread Cutting (in.) | 1 5/8-72 |
| Thread Cutting (mm) | 0.05–20 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 115 x 44 x 66 in |
| Product Weight | 6,245 lb |
