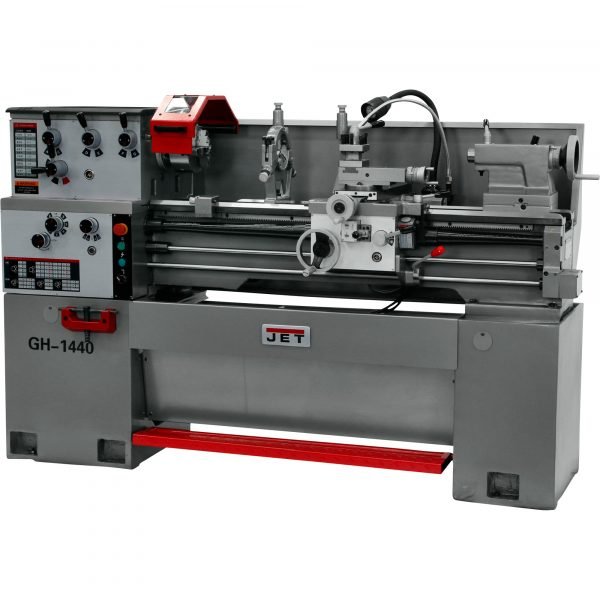

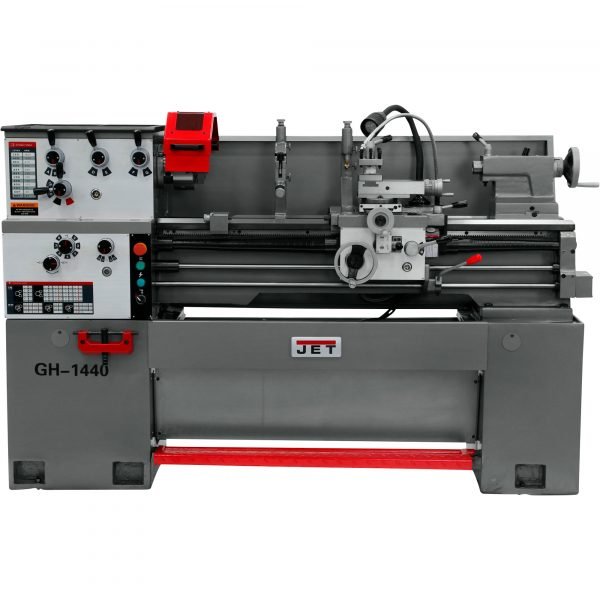

JET GH-1440-1 3PH Geared Head Lathe – 14x40in, Taper, Collet Closer
In Stock
$9,169.00
In Stock
The JET GH-1440-1 Geared Head Lathe is a high-performance industrial lathe with production-ready features. Optimized for powerful 3 Phase operation, it includes a Taper Attachment for conical parts and a Collet Closer for rapid, accurate bar stock work. Ideal for demanding production workshops. Choose the high torque, specialized tooling, and industrial power of the JET 3 Phase Lathe.
Description
This heavy-duty, 3-phase JET Geared Head Lathe with Taper Attachment and Collet Closer weighs over 1 ton and comes equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide smooth and quiet operation while maintaining peak performance. Includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked. Features a 14in. swing over bed and 40in. distance between centers. 40 inch threads/ 23 metric threads. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) Geared head lathe with taper attachment and collet closer
| Item# | 66118 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 2336.0 lbs |
| Distance Between Centers (in.) | 40 |
| Swing Over Bed (in.) | 14 |
| Volts | 230/460 |
| Horsepower | 3 |
| Speed (RPM) | 40–1,800 |
| Spindle Bore (in.) | 1 1/2 |
| Spindle Mount | D1-4 |
| Carriage Travel (in.) | 37 1/2 |
| Thread Cutting (in.) | 4–112 |
| Thread Cutting (mm) | 0.45–7.5 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 74 13/16 x 30 x 56 1/2 |
| Product Weight | 2,336 lb |
