Industrial Air IV7518075 – 80 Gal 2-Stage Compressor
In Stock
$1,365.00
In Stock

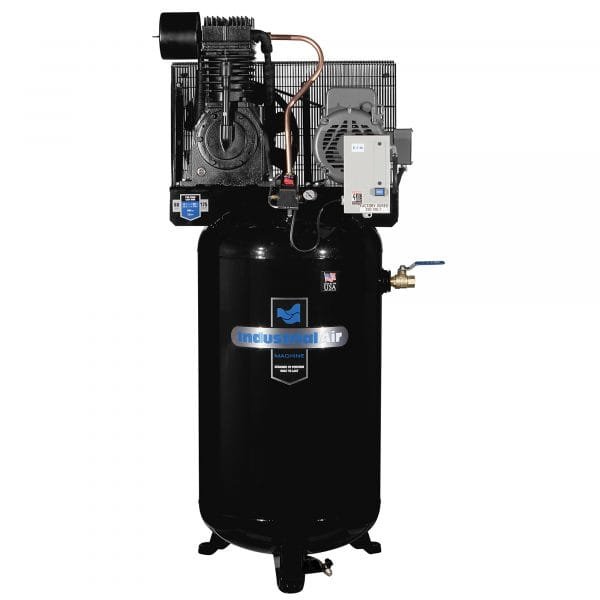

Industrial Air IV7518075 80 Gal 2-Stage Compressor This heavy-duty 7.5HP two-stage system features a massive 80-gallon vertical configuration designed to provide maximum pneumatic power for high-volume manufacturing and industrial production infrastructures.
Extreme Piston Strength: Generates massive 7.5 HP output
Massive Vertical Tank: Features 80-gallon stationary tank design
Industrial Single Phase: Requires 230V single-phase electrical power
Maximum Industrial Pressure: Maintains consistent 175 PSI delivery
Extended Service Life: Includes durable oil-lubricated pump design
Industrial Air IV7518075 80 Gallon Vertical Two Stage
| Model | IV7518075 |
| Brand | Industrial Air |
| Warranty | 2 year |
| Ship Weight | 715.0 lbs |
| Horsepower | 7.5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 22.1 |
| Max. PSI | 175 |
| CFM at Max. PSI | 21.2 |
| Motor Phase | 1 |
| Amps | 31 |
| Pump Material | Cast Iron |
| Oil Required | Yes |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Air Dryer | None |
| Tank Orientation | Vertical |
| Product Weight | 623.0000 lb |
| Dimensions L x W x H (in.) | 28.0 x 29.0 x 76.0 in |
