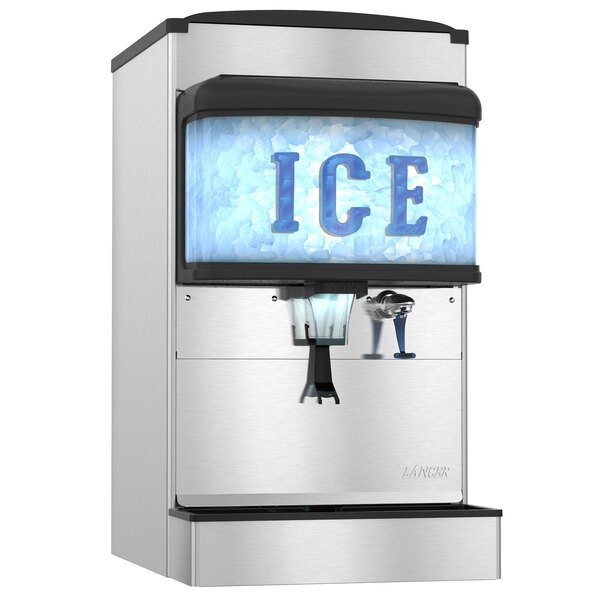

Hoshizaki DM-4420N – 22″ Countertop Cubelet Dispenser

Hoshizaki DM-4420N – 22″ Professional Countertop Cubelet Ice Dispenser

The Hoshizaki DM-4420N is a specialized high-clearance ice dispenser engineered for rapid self-service environments that require a slim 22-inch footprint. Sourcing Hoshizaki DM technology provides your workspace with up to 200 lbs of ice storage and precision dispensing logic. Look, truth is, the DM-4420N is the “High-Volume Solution”; while it does not produce ice itself, it is designed to hold and dispense huge quantities of Cubelet ice from a top-mounted ice machine, making it the definitive choice for fast-food lobbies and theaters requiring 8.8 lbs of ice per minute dispensing speed.

High-Flow Dispense Dynamics & Internal Agitation Logic

The Hoshizaki DM-4420N utilizes heavy-duty internal agitation and polyurethane insulation to achieve unrivaled ice quality retention. This 22-inch ice hub features a unique dispense mechanism that prevents clumping and bridging, ensuring a smooth flow of ice every time the lever is pressed. The ROI is realized through “Labor Efficiency”; its massive 200 lb storage capacity reduces the frequency of “ice-out” scenarios during peak rushes, while the slim design allows you to fit two units where only one standard dispenser would normally reside.

Technical Specifications

• Storage Capacity: 200 lbs (91 kg) of ice.
• Dispense Speed: 8.8 lbs of ice per minute for rapid service.
• Compatibility: Designed to fit top-mounted Hoshizaki KM or KMD series ice machines.
• Electrical Specs: 115V / 60Hz / 1-Phase; 1.4 Amps (NEMA 5-15P).
• Safety Features: Auger motor protection and safety dispense interlock.
• Dimensions: 22.0″ W x 28.0″ D x 36.4″ H.

Hoshizaki DM-4420N Application & In The Box

• Ideal For: Fast food restaurant lobbies, movie theater concessions, and university dining halls.
• In The Box: DM-4420N Dispenser Unit, Drip Tray, and Mounting Hardware.
