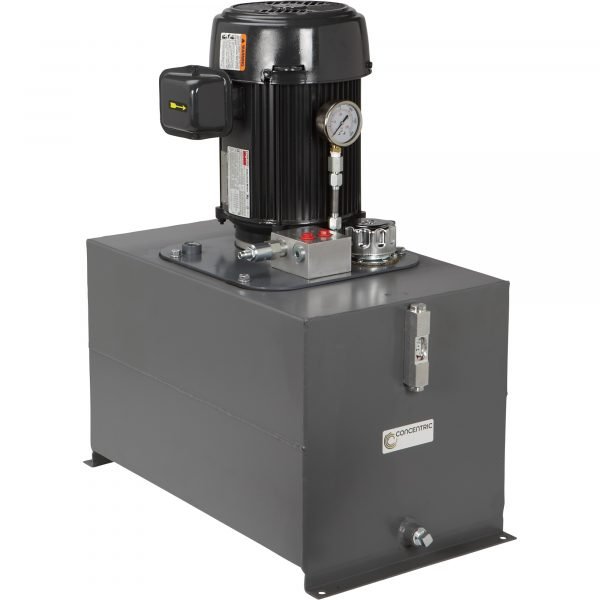

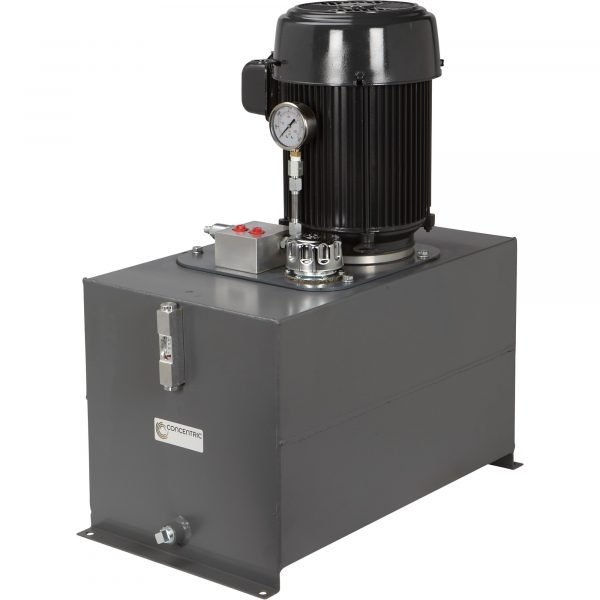

Haldex 1400030 AC Hydraulic Power System 5 HP 230/460V AC Self-Contained
In Stock
$1,020.00
In Stock
Power your industrial equipment with the reliable Haldex 1400030 AC Hydraulic Power System. This Self-Contained unit includes a robust 5 HP motor and operates on versatile 230/460V AC input power. The Haldex Power System is engineered for continuous duty, delivering consistent hydraulic pressure and flow for heavy-duty industrial applications.
Description
Handles a wide variety of industrial applications. All models have 1725 RPM TEFC (totally enclosed, fan-cooled) motors, check valve, adjustable relief valve and 3000 PSI pressure gauge. High-strength cast iron housing. DU bearings. Filler screen, sight gauge and flexible coupling. Hardened and ground alloy steel gears and shafts. Pressure-balanced pumps provide up to 90% overall efficiency. Ideal for systems using low-viscosity fluids in high temps and high duty cycle applications. Pressure-balanced pump provides high speed positioning and then maximum working pressure as in clamping, crimping and metal-forming machines. Does not include manifold or interface.
| Item# | 10593 |
| Brand | Haldex |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 132.0 lbs |
| Flow (GPM) | 3.5 |
| Inlet Port (in.) | 9/16-18 SAE |
| Outlet Port (in.) | 9/16-18 SAE |
| Reservoir Capacity | 15 gal. |
| Volts | 230, 460 AC |
| Phase | 3 |
