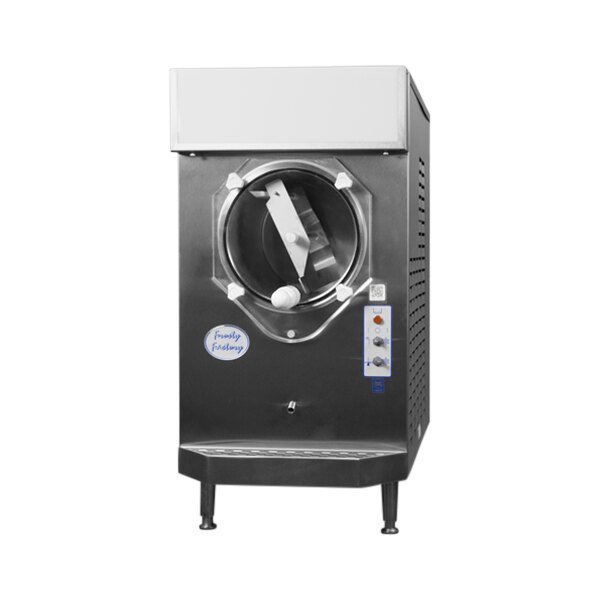

Frosty Factory 137A – 12 Qt Large Cylinder Cocktail Machine
In Stock
$3,603.00
In Stock
Elevate your beverage service with the Frosty Factory 137A – 12 Qt Large Cylinder Cocktail Machine.
- Large Cylinder Design: Rapid frozen beverage preparation system
- 12 Quart Capacity: Efficient single flavor batch production
- Air Cooled Unit: Reliable and easy installation process
- All Metal Housing: Rugged and long lasting durability
- Consistent Results: Reliable daily professional performance
Description
Frosty Factory 137A – Industrial 12 Qt Large Cylinder Air-Cooled Suite
The Frosty Factory 137A is a high-performance single-station frozen beverage machine engineered for reliability and easy “plug-and-play” installation. Sourcing Frosty Factory air-cooled hardware provides your workspace with a massive 7-quart freezing cylinder and 12-quart total capacity. Look, truth is, the 137A is the “Reliability Benchmark”; it features a significantly larger freezing cylinder than many competitors in its class, ensuring that your frozen cocktails maintain a thick, smooth consistency even during a sudden burst of orders.
Large Cylinder Dynamics & High-Efficiency Freeze Logic
The Frosty Factory 137A utilizes high-torque gear motors and industrial air-cooled condensers to achieve maximum freeze-down speed. This compact frozen drink station features a lighted flavor sign to drive impulse sales and a rugged stainless steel build that is built to last for years of continuous service. The ROI is found in its “Recovery Speed”; the large cylinder act as a thermal buffer, allowing you to serve back-to-back orders without the “liquid-out” issues common in machines with smaller cylinders.
Professional Insights: The 137A is the definitive “starter” machine for high-quality frozen programs. It’s a true workhorse that doesn’t require special plumbing—just a standard 115V outlet. Its 7-quart freezing cylinder is the real secret; it provides enough “frozen reserve” to handle a busy happy hour without breaking a sweat.
Technical Specifications
- Total Capacity: 12 Quarts (5 Qt Hopper + 7 Qt Freezing Cylinder)
- Production: Up to 8.0 Gallons Per Hour
- Cooling System: Self-Contained Air-Cooled (Requires 6″ clearance)
- Electrical Specs: 115V / 13.0 Amps (NEMA 5-15P)
- Construction: Full Stainless Steel Frame and Panels
Frosty Factory 137A Application & In The Box
- Ideal For: Casual dining restaurants, specialized coffee shops, and seasonal concession stands.
- In The Box: 137A Air-Cooled Unit, 7 Qt Stainless Steel Auger, and Operator’s Maintenance Kit.
Frosty Factory 137A Specs
Shipping Weight: 190 lb.
Width: 16 1/2 Inches
Depth: 26 Inches
Height: 32 Inches
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 115 Volts
Capacity: 3 Gallons
Capacity per Bowl: 3 Gallons
Features: Air Cooled Made in America NSF Listed
Number of Bowls: Single
Plug Type: NEMA 5-20P
Refrigerant Type: R-404A
Style: Standard Pourover
Type: Cocktail Machines
Technical Insights: Frosty Factory 137A 12 Qt Large Cylinder Cocktail Machine
What makes the 137A \"Large Cylinder\" model different from standard compacts?
The 137A features an oversized 12-quart freezing cylinder that provides a deeper reservoir of frozen product than many competitors in its class. This air-cooled unit is designed for rapid throughput, allowing for more servings per hour by minimizing the time needed for the mix to reach serving temperature. It is the ideal workhorse for busy cafes and pool bars that need a reliable, high-capacity single-flavor machine.
What are the critical electrical and airflow needs for this air-cooled unit?
This unit runs on a standard 115V, 15-amp circuit, but it requires significant ventilation—ideally 6 to 10 inches of clearance on all sides—to shed heat effectively. Avoid placing the unit in a corner or under low cabinetry, as trapped heat will cause the compressor to run longer, increasing energy costs and freeze times. Ensuring the air filter is cleaned weekly will maintain the factory-spec cooling performance during high-use periods.
How do technicians maintain the 137A\'s high-torque drive system?
Technicians should inspect the drive belt tension and the condition of the rear auger seal every month to prevent mechanical fatigue. Lubricating the seal with food-grade grease prevents sugar-rich liquid from leaking into the motor assembly, which is the most common cause of premature failure in industrial slushy machines. Daily rinsing and weekly deep sanitation of the bowl and dispense valve are required for optimal performance and hygiene.
How does the torque-sensing technology protect the motor and auger?
The 137A utilizes a mechanical torque sensor that measures the resistance of the frozen product; when the slush reaches the correct thickness, the cooling system cycles off. This prevents the \"ice-locking\" effect that can snap auger blades or burn out drive motors if the syrup-to-water ratio is incorrect. It is a time-tested, reliable safeguard that ensures consistent texture and protects your long-term equipment investment.
Why buy your Frosty Factory 137A from Muldepot.com?
Muldepot.com offers the Frosty Factory 137A with a 60-day return policy and a Price Match guarantee, ensuring your business gets the best value on premium cocktail gear. We understand the demands of high-volume retail and provide the technical support needed to help you maximize your frozen beverage program. Trust our expert team for a transparent, professional purchasing experience that starts your program off right.
