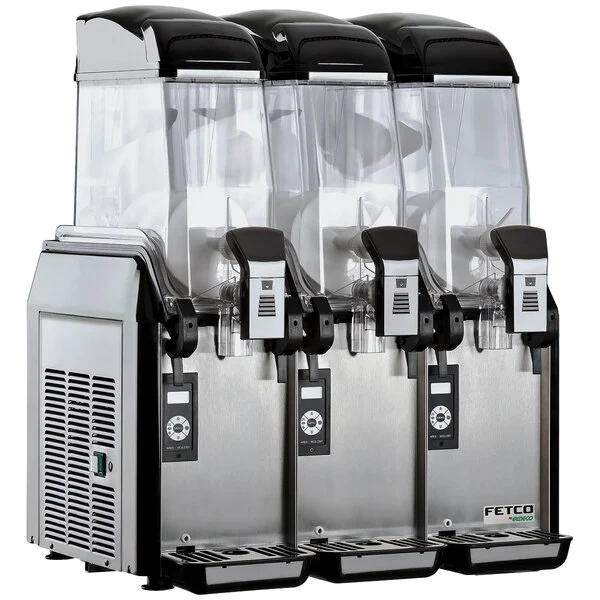

Fetco Elmeco PEL0301 – Triple 3.2 Gallon Slushy Unit
In Stock
$2,344.00
In Stock
Maximize your frozen output with the Fetco Elmeco PEL0301 – Triple 3.2 Gallon Slushy Unit.
- Triple Bowl Design: Large scale diverse flavor production
- 3.2 Gallon Tanks: High volume batch beverage service
- Vertical Drive System: Innovative and efficient mixing technology
- Electronic Control: Precise temperature and texture management
- Modern Aesthetics: Sleek design for front counters
Description
Fetco Elmeco PEL0301 (First Class) – Industrial Triple 3.2 Gal Slushy Authority
The Fetco Elmeco PEL0103 is a high-capacity triple-bowl granita system engineered for high-traffic environments that demand maximum flavor variety and surgical consistency. Sourcing Fetco Elmeco technology provides your workspace with three 3.2-gallon (12-liter) bowls and a patented vertical drive system. Look, truth is, the PEL0301 is the “Throughput King”; its unique vertical mixing logic ensures the last drop is as perfectly textured as the first, eliminating the ice-clumping common in horizontal-auger units and making it the definitive choice for stadiums, theme parks, and busy theaters.
Vertical Drive Dynamics & Total Cold Transmission Logic
The Fetco Elmeco PEL0301 utilizes electronic density sensors and bottom-fed cooling transmission to achieve unrivaled freeze-down speed. This industrial frozen beverage hub features a seal-less design that eliminates the bottom-gasket leaks that plague standard machines, drastically reducing long-term maintenance costs. The ROI is realized through its “Variety Potential”; with 9.6 gallons of total capacity across three independent bowls, you can manage high-demand frozen cocktails, coffee creams, and fruit granitas simultaneously with precision thermal control.
Technical Specifications
- Total Capacity: Triple 3.2 Gallon Bowls (9.6 Gallons Total)
- Mixing System: Patented Seal-Less Vertical Drive Logic
- Interface: Digital Control Panel with Independent Density/Temperature Settings
- Electrical Specs: 115V / 60Hz / 12.0 Amps (NEMA 5-15P)
- Cooling: High-Efficiency Air-Cooled Compressor with Front-to-Back Airflow
Fetco Elmeco PEL0301 Application & In The Box
- Ideal For: Amusement parks, high-volume stadium concessions, and multi-flavor cocktail bars.
- In The Box: PEL0301 Triple Unit, Three 12L BPA-Free Bowls, and Technical Service Kit.
Fetco PEL0301 Specs
Shipping Weight: 155 lb.
Width: 24 1/2 Inches
Depth: 22 Inches
Height: 30 3/4 Inches
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 120 Volts
Capacity: 9.6 Gallons
Capacity per Bowl: 3.2 Gallons
Capacity per Compartment: 3.2 Gallons
Color: Black
Horsepower: 3/4 hp
Number of Bowls: Triple
Plug Type: NEMA 5-15P
Style: Standard Pourover
Type: Granita / Slushy Machines
Technical Insights: Fetco Elmeco PEL0301 Triple 3.2 Gallon Slushy Unit
How does the \"Total Cold\" system manage a 9.6-gallon triple-tank load?
The Elmeco PEL0301 is a high-variety powerhouse featuring three 3.2-gallon bowls (9.6 gallons total) and a patented bottom-up cooling design. This ensure that all three flavors are chilled evenly without the \"warm zones\" common in traditional top-drive machines. The triple vertical drive system is seal-less through the bowl, which dramatically reduces the long-term risk of internal leaks and mechanical failure across all three tanks.
What are the electrical and clearance requirements for this triple unit?
This unit operates on a standard 115V, 15-amp circuit, but because it powers three independent drive systems, a dedicated line is strongly recommended. For optimal refrigeration performance, provide at least 8 inches of clearance on all sides to allow the air-cooled condenser to shed heat efficiently. Proper ventilation is critical for maintaining the factory-spec freeze-down times, especially in high-volume environments.
What maintenance routines protect the Elmeco triple-vertical drive?
Maintenance is simplified by the seal-less design, but the vertical augers and drive shafts should be removed and sanitized weekly to prevent bacterial growth and syrup buildup. Technicians should check the drive gears annually for proper lubrication. Keeping the condenser air filter clean is the most important task to ensure the \"Total Cold\" system remains energy-efficient and prevents compressor over-cycling during hot shifts.
How does the digital interface manage three independent flavor textures?
The PEL0301 features precise electronic controls that allow you to set independent \"firmness\" levels for each of the three tanks. This allows you to serve a thick fruit slush, a delicate granita, and a frozen coffee drink simultaneously, each at their optimal consistency. The system monitors torque and temperature for each bowl independently, providing the ultimate in granular control for complex beverage menus.
Why is Muldepot.com the preferred partner for Fetco Elmeco Triple units?
Muldepot.com offers the Elmeco PEL0301 with a 60-day satisfaction window and a Price Match guarantee, ensuring you get the best industrial value on premium Italian technology. We understand the technical advantages of the Elmeco design and offer the expert support needed for a successful triple-tank installation. Trust our verified supply chain for reliable delivery and professional-grade post-purchase support.
