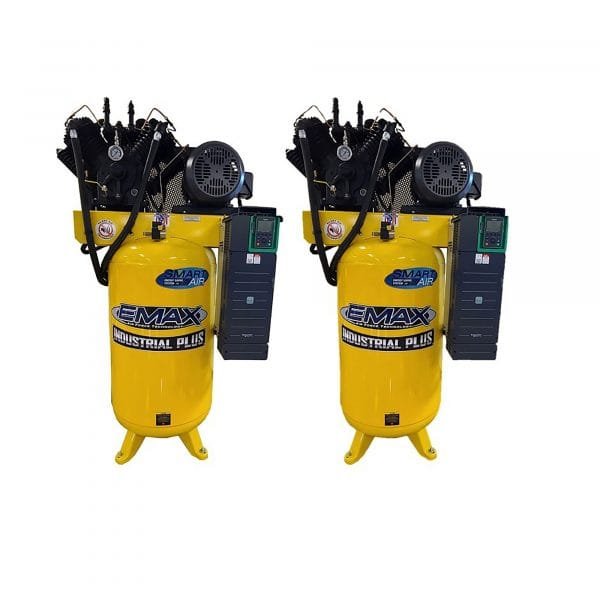

EMAX EVR10A120V13 – Smart Air Dual Compressor
In Stock
$7,682.00
In Stock
EMAX EVR10A120V13: Combining a 120-gallon storage reserve with Smart Air PLC technology, this dual-pump system provides the ultimate in reliable, high-volume pneumatic power.
- Motor Specs: 10.0 HP (Dual Pump) 1PH/3PH Ready
- Flow Capacity: 962 L/min (34 CFM @ 100 PSI)
- Force Rating: 175 PSI (12 Bar)
- Cylinder Size: 120 Gallon Vertical
- Elite Module: Automated Maintenance Alerts & Monitoring
Emax EVR10A120V13 Smart Air Dual Compressor
| Model | EVR10A120V13 |
| Brand | Emax |
| Warranty | 1 year |
| Ship Weight | 2508.0 lbs |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 230 |
| Stage | 0 |
| CFM at 90 PSI | 76 |
| Max. PSI | 175 |
| CFM at 40 PSI | 73 |
| CFM at Max. PSI | 67 |
| Working Pressure | 145 PSI |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 1 in. NPT |
| Motor RPM | 1,750 |
| Motor Phase | 1 |
| Amps | 80 |
| Duty Cycle | 80 % |
| Tank Fill Time | 4.5 min |
| Fuel Capacity | 0 Gal |
| Pump Material | Cast Iron |
| Noise Level | 67 dB |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| Drain Type | Automatic |
| After Cooler Included | Yes |
| Air Dryer | None |
| Tank Orientation | Vertical |
| Product Weight | 1620.0000 lb |
| Dimensions L x W x H (in.) | 41.0 x 43.0 x 78.0 in |
