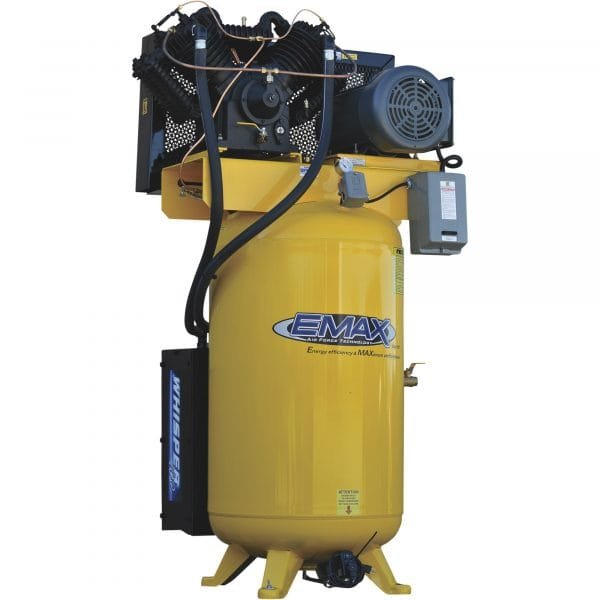

EMAX ESP10V080V1 – Industrial Plus Silent Air Pressure Lubricated Compressor
In Stock
$2,036.00
In Stock
EMAX ESP10V080V1: This 10HP single-phase unit features a heavy-duty pressure-lubricated pump and silent technology, providing industrial-grade power with a significantly reduced noise profile.
- Drive Power: 10.0 HP Single Phase
- Volume Delivery: 962 L/min (34 CFM @ 100 PSI)
- Max Compression: 175 PSI (12 Bar)
- Vessel Storage: 80 Gallon Vertical
- Build Design: Industrial Pressure Lubrication Pump
EMAX ESP10V080V1 Industrial Plus Silent Air Pressure Lubricated
| Model | ESP10V080V1 |
| Brand | Emax |
| Warranty | 5 year |
| Ship Weight | 988.0 lbs |
| Horsepower | 10 |
| Air Tank Size | 80 |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 40 |
| Max. PSI | 175 |
| CFM at Max. PSI | 30 |
| Working Pressure | 145 |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 3/4 |
| Motor RPM | 1,750 |
| Motor Phase | 1 |
| Amps | 60 |
| Duty Cycle | 70 % |
| Tank Fill Time | 4 |
| Pump Life | 70,000 |
| Pump Material | Solid cast iron |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Drain Type | Automatic |
| Weight (lbs.) | 810 |
| Dimensions L x W x H (in.) | 38 x 42 x 72 |
