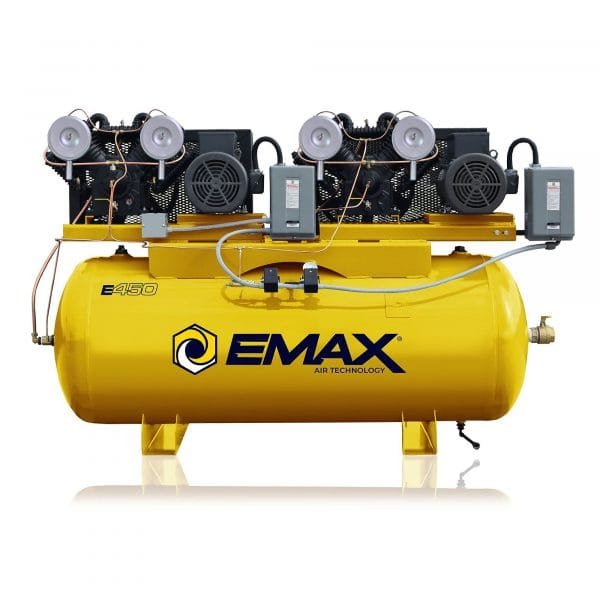

EMAX ESP10D120V3 – Silent V4 3PH Horizontal Dual Piston Compressor
In Stock
$4,134.00
In Stock
EMAX ESP10D120V3: A 3-phase powerhouse utilizing two V4 pumps to deliver consistent high-pressure airflow, engineered for large fabrication shops requiring a horizontal footprint.
- Drive Strength: 10.0 HP 3-Phase
- Airflow Volume: 962 L/min (34 CFM @ 100 PSI)
- Pressure Peak: 175 PSI (12 Bar)
- Storage Build: 120 Gallon Horizontal
- System Extra: Simultaneous Dual-Pump Lead/Lag Control
Emax ESP10D120V3 Silent V4 3PH Horizontal Dual Piston Compressor
| Model | ESP10D120V3 |
| Brand | Emax |
| Warranty | 1 year |
| Ship Weight | 1850.0 lbs |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 230/460 |
| Stage | 2 |
| CFM at 90 PSI | 68 |
| Max. PSI | 175 |
| CFM at 40 PSI | 99 |
| CFM at Max. PSI | 64 |
| Working Pressure | 145 PSI |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 1 in. NPT |
| Motor RPM | 1,750 |
| Motor Phase | 3 |
| Amps | 48 |
| Duty Cycle | 60 % |
| Tank Fill Time | 4 min |
| Fuel Capacity | 0 Gal |
| Pump Material | Cast Iron |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| Drain Type | Automatic |
| After Cooler Included | No |
| Air Dryer | None |
| Tank Orientation | Horizontal |
| Product Weight | 1850.0000 lb |
| Dimensions L x W x H (in.) | 96.0 x 42.0 x 64.0 in |
