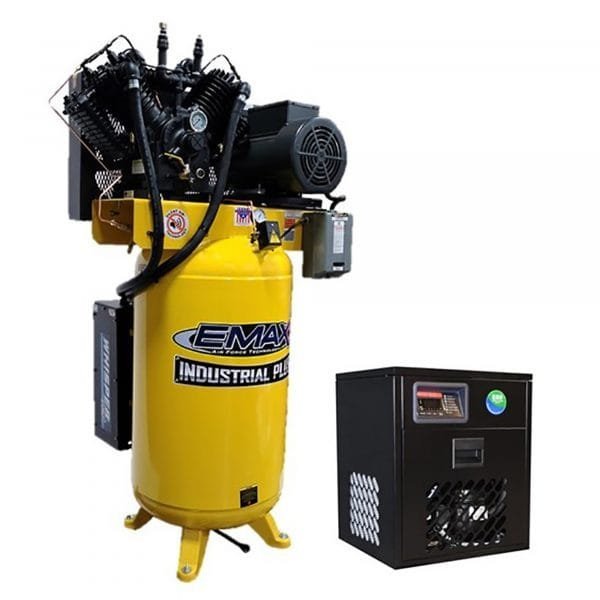

EMAX ESP07V080V1PK – Silent 1PH Vertical Air Compressor
In Stock
$2,566.00
In Stock
EMAX ESP07V080V1PK: Combining silent technology with moisture management, this 7.5HP unit includes the Whisper100 system and an automatic tank drain for low-noise operation.
- Motor Specs: 7.5 HP Single Phase
- Discharge Rate: 878 L/min (31 CFM @ 100 PSI)
- Force Rating: 175 PSI (12 Bar)
- Cylinder Size: 80 Gallon Vertical
- Technical Spec: Patented Noise Suppression System
Emax ESP07V080V1PK Silent 1PH Vertical Compressor
| Model | ESP07V080V1PK |
| Brand | Emax |
| Warranty | 1 year |
| Ship Weight | 1019.0 lbs |
| Horsepower | 7.5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 32 |
| Max. PSI | 175 |
| CFM at 40 PSI | 35 |
| CFM at Max. PSI | 27 |
| Working Pressure | 145 PSI |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 3/4 in. NPT |
| Motor RPM | 1,750 |
| Motor Phase | 1 |
| Amps | 32 |
| Duty Cycle | 60 % |
| Tank Fill Time | 4.5 min |
| Fuel Capacity | 0 Gal |
| Pump Material | Cast Iron |
| Noise Level | 72 dB |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| Drain Type | Automatic |
| After Cooler Included | Yes |
| Air Dryer | Mounted |
| Tank Orientation | Vertical |
| Product Weight | 1250.0000 lb |
| Dimensions L x W x H (in.) | 38.0 x 42.0 x 72.0 in |
