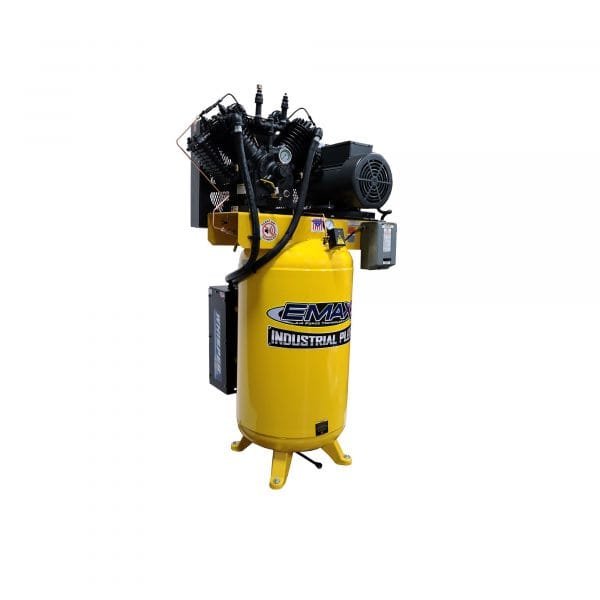

EMAX ESP07V080V1 – Prem 1PH Vertical Air Compressor w/ Lube Pump
In Stock
$1,970.00
In Stock
EMAX ESP07V080V1: This premium 7.5HP single-phase compressor features a dedicated oil pump for pressure lubrication, extending component life during heavy industrial duty cycles.
- Drive Power: 7.5 HP Single Phase
- Volume Delivery: 878 L/min (31 CFM @ 100 PSI)
- Max Compression: 175 PSI (12 Bar)
- Vessel Storage: 80 Gallon Vertical
- Build Design: Industrial Pressure Lubrication Pump

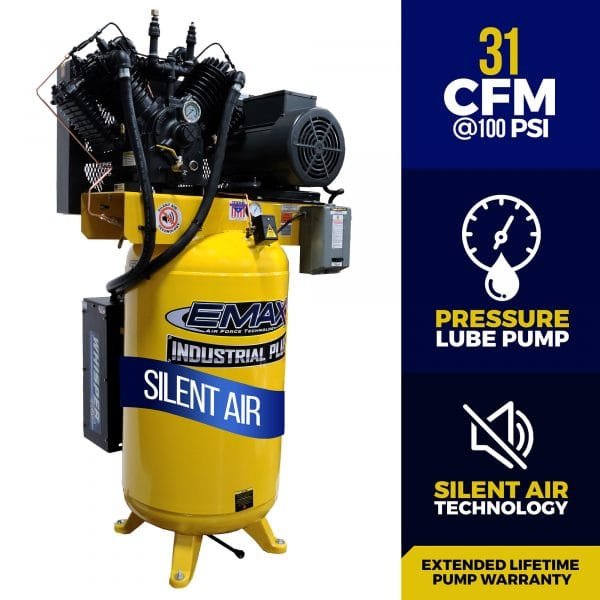

Emax ESP07V080V1 Prem 1PH Vertical Air Silencer Pressure Lube Pump
| Model | ESP07V080V1 |
| Brand | Emax |
| Warranty | 1 year |
| Ship Weight | 956.0 lbs |
| Horsepower | 7.5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 32 |
| Max. PSI | 175 |
| CFM at 40 PSI | 35 |
| CFM at Max. PSI | 25 |
| Working Pressure | 145 PSI |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 3/4 in. NPT |
| Motor RPM | 1,750 |
| Motor Phase | 1 |
| Amps | 32 |
| Duty Cycle | 60 % |
| Tank Fill Time | 4 min |
| Fuel Capacity | 0 Gal |
| Pump Material | Cast Iron |
| Noise Level | 79 dB |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | No |
| Drain Type | Automatic |
| After Cooler Included | No |
| Air Dryer | None |
| Tank Orientation | Vertical |
| Product Weight | 810.0000 lb |
| Dimensions L x W x H (in.) | 38.0 x 42.0 x 72.0 in |
