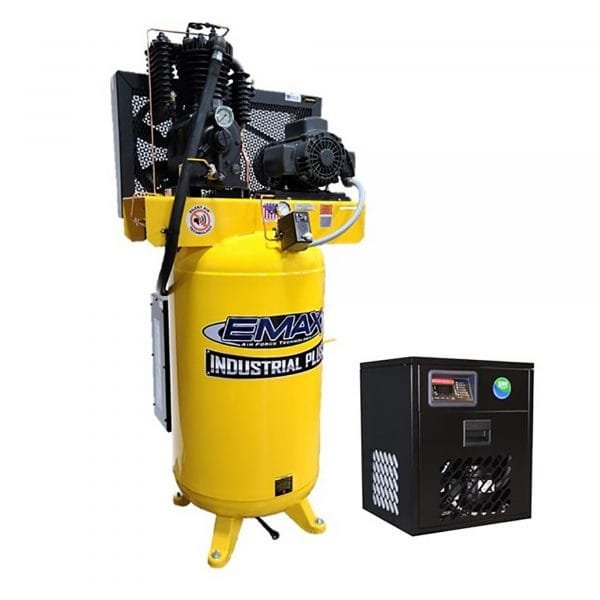

EMAX ESP05V080I3PK – Silent 3PH Vertical Air Compressor
In Stock
$2,239.00
In Stock
EMAX ESP05V080I3PK: A silent 3-phase solution that integrates the Whisper100 system with an electronic auto-drain and aftercooler for high-purity air in noise-sensitive zones.
- Drive Power: 5.0 HP 3-Phase
- Discharge Rate: 538 L/min (19 CFM @ 100 PSI)
- Max Compression: 175 PSI (12 Bar)
- Tank Orientation: 80 Gallon Vertical
- Technical Spec: Patented Silent Air Technology
Emax ESP05V080I3PK Silent 3PH Vertical Compressor
| Model | ESP05V080I3PK |
| Brand | Emax |
| Warranty | 1 year |
| Ship Weight | 913.0 lbs |
| Horsepower | 5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230/460 |
| Stage | 2 |
| CFM at 90 PSI | 20 |
| Max. PSI | 175 |
| CFM at 40 PSI | 23 |
| CFM at Max. PSI | 16 |
| Working Pressure | 145 PSI |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 3/4 in. NPT |
| Motor RPM | 1,750 |
| Motor Phase | 3 |
| Amps | 13 |
| Duty Cycle | 60 % |
| Tank Fill Time | 5 min |
| Fuel Capacity | 0 Gal |
| Pump Material | Cast Iron |
| Noise Level | 70 dB |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| Drain Type | Automatic |
| After Cooler Included | Yes |
| Air Dryer | Mounted |
| Tank Orientation | Vertical |
| Product Weight | 1025.0000 lb |
| Dimensions L x W x H (in.) | 42.0 x 34.0 x 75.0 in |
