EMAX ERI0151203 – 3PH Industrial Rotary Screw Compressor
In Stock
$4,963.00
In Stock
EMAX ERI0151203: This 15HP 3-phase powerhouse features a 120-gallon horizontal tank to ensure a large air reserve for high-demand pneumatic automation and sandblasting.
- Drive Power: 15.0 HP 3-Phase
- Flow Capacity: 1699 L/min (60 CFM @ 150 PSI)
- Max Compression: 150 PSI (10 Bar)
- Tank Orientation: 120 Gallon Horizontal
- Elite Module: Whisper-Quiet Acoustic Panel Build

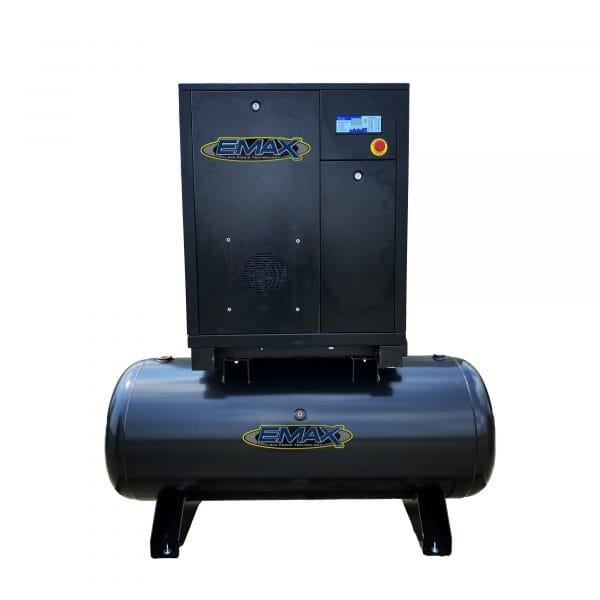

Emax ERI0151203 3PH Industrial Rotary Screw Compressor
| Model | ERI0151203 |
| Brand | Emax |
| Warranty | 1 year |
| Ship Weight | 1890.0 lbs |
| Horsepower | 15 HP |
| Air Tank Size | 120 Gal |
| Volts | 230/460 |
| Stage | 0 |
| CFM at 90 PSI | 58 |
| Max. PSI | 145 |
| CFM at 40 PSI | 60 |
| CFM at Max. PSI | 53 |
| Working Pressure | 145 PSI |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 1 in. NPT |
| Motor RPM | 1,750 |
| Motor Phase | 3 |
| Amps | 36 |
| Duty Cycle | 100 % |
| Tank Fill Time | 0 min |
| Fuel Capacity | 0 Gal |
| Noise Level | 65 dB |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | No |
| After Cooler Included | No |
| Air Dryer | None |
| Product Weight | 577.0000 lb |
| Dimensions L x W x H (in.) | 48.0 x 73.0 x 73.0 in |
