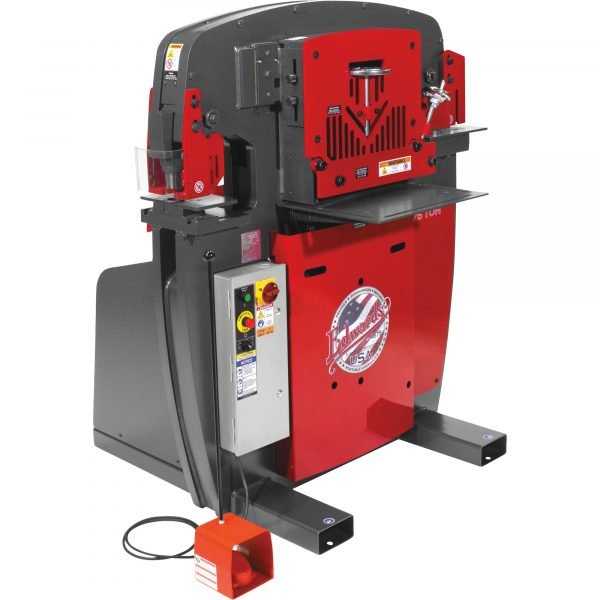

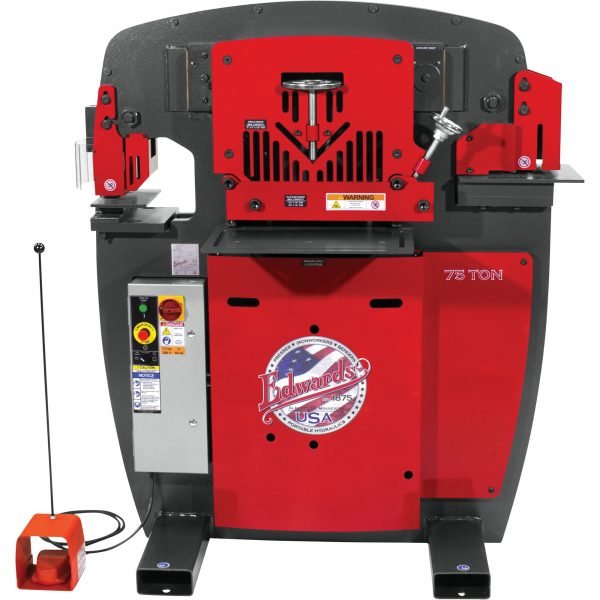

Edwards IW75-3P460 JAWS 75 Ton Ironworker – 3PH 460V
In Stock
$12,444.00
In Stock
The Edwards IW75 JAWS 75 Ton Ironworker is a hydraulic fabricating machine designed for heavy-duty industrial environments. Delivering 75 Tons of force and running on 3 Phase 460V power, this base model excels at powerful punching and shearing of thick material. Ideal for structural steel and large fabrication shops. Choose the high tonnage, robust industrial power, and foundational performance of the Edwards Ironworker.
Description
The Edwards JAWS 75-Ton Ironworker packs the punch you need along with a large capacity to accomplish bigger tasks. Features 4 available workstations including punch assembly, flat bar shear, angle shear, and coper notcher. ANSI B11.5-1988R(02) compliant. ETL/UL approved controls. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) 75-ton Ironworker
Product Manual A Product Manual B
| Item# | 57816 |
| Brand | Edwards Ironworkers |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 4100.0 lbs |
| Horsepower | 7.5 |
| Volts | 460 |
| Phase | 3 |
| Amps | 11 |
| Hydraulic Pump | 10 1/2 GPM, 2-stage |
| Valve Pressure | 3,500 PSI |
| Cylinder | 3 1/2 in. ram |
| Resevoir | 17 gal. |
| Throat Depth (in.) | 10 |
| Punching Pressure (Tons) | 75 |
| Flat Bar Shearing Capacity (in.) | 1/2 x 14, 3/4 x 10 |
| Square/Round Shear Capacity (in.) | 1 |
| Angle Shear Capacity (in.) | 5 x 5 x 1/2 |
| Coper Notcher Capacity (in.) | 1/2 |
| Dimensions L x W x H (in.) | 46 x 69 x 66 |
| Product Weight | 4,100 lb |
