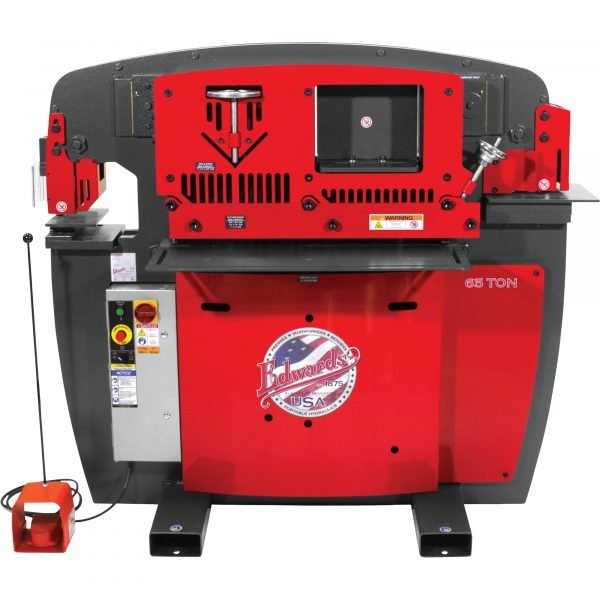

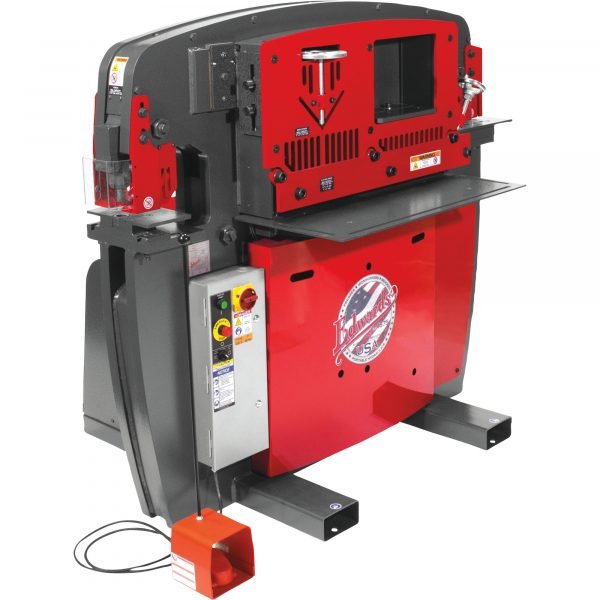

Edwards IW65-3P208 JAWS 65 Ton Ironworker – 3PH 208V
In Stock
$12,596.00
In Stock
The Edwards IW65 JAWS 65 Ton Ironworker is a heavy-duty fabricator optimized for commercial low-voltage power sources. Delivering 65 Tons of force and operating efficiently on 3 Phase 208V power, this base model ensures powerful punching and shearing capability in facilities with standard commercial circuits. Ideal for commercial buildings and facilities with low-voltage 3-phase service. Choose the superior tonnage and power-optimized reliability of the Edwards Ironworker.
Description
The versatile Edwards JAWS 65-Ton Ironworker packs the punch you need to get any size job done, and the flexibility to tailor it to your specific needs. Features 5 available workstations including punch assembly, flat bar shear, angle shear, coper notcher and a universal open tooling station. ANSI B11.5-1988R(02) compliant. ETL/UL approved controls. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) 65-ton Ironworker
Product Manual A Product Manual B
| Item# | 57798 |
| Brand | Edwards Ironworkers |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 4750.0 lbs |
| Horsepower | 7.5 |
| Volts | 208 |
| Phase | 3 |
| Amps | 22 |
| Hydraulic Pump | 10 1/2 GPM, 2-stage |
| Valve Pressure | 3,500 PSI |
| Cylinder | 3 1/2 in. ram |
| Resevoir | 17 gal. |
| Throat Depth (in.) | 9 3/4 |
| Punching Pressure (Tons) | 65 |
| Flat Bar Shearing Capacity (in.) | 3/8 x 24, 1/2 x 14, 1 x 4 |
| Square/Round Shear Capacity (in.) | 1 |
| Angle Shear Capacity (in.) | 5 x 5 x 3/8 |
| Coper Notcher Capacity (in.) | 3/8 |
| Dimensions L x W x H (in.) | 46 x 69 x 63 |
| Product Weight | 4,750 lb |
