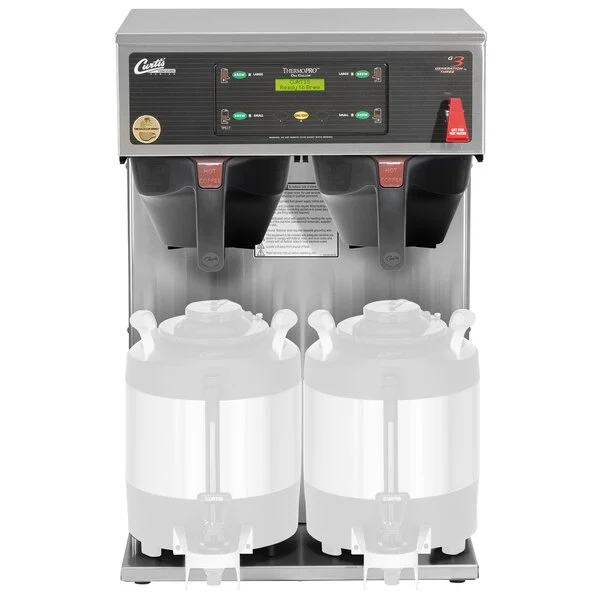

Curtis TP1TT10A3000 – ThermoPro Twin 2 Gallon Tall Brewer
In Stock
$1,600.00
In Stock
Curtis TP1TT10A3000 delivers 2-gallon batches per side for high-volume restaurants ensuring consistent digital precision brewing performance.
• 15-21 gallons per hour brewing performance
• 2-gallon twin tall thermal dispenser capacity
• Industrial stainless steel frame durable build
• 220 volts 5100 watts electrical power
• Large hotels and banquet catering
Description
Curtis TP1TT10A3000 ThermoPro – High-Volume Extraction Authority
The Curtis TP1TT10A3000 ThermoPro Twin 2 Gallon Tall Brewer is the heavy-duty answer for operations where “running out of coffee” simply isn’t an option. Look, if you’re managing a stadium, a large-scale catering event, or a high-traffic hotel lobby, you know that peak hours are won or lost on recovery time. The Curtis TP1TT10A3000 ThermoPro Twin 2 Gallon Tall Brewer eliminates the bottleneck by delivering up to 21 gallons of precision-brewed coffee per hour. In the world of commercial coffee machines, this unit stands as a benchmark for dual-head reliability and thermal consistency.
Curtis TP1TT10A3000 Engineering & ROI
Here’s the deal: this isn’t just a basic water heater with a timer. The Curtis TP1TT10A3000 ThermoPro Twin 2 Gallon Tall Brewer utilizes the G4 digital control system to manage the “Golden Cup” extraction variables. You can precisely program pulse brewing, pre-infusion, and bypass settings via an intuitive touchscreen. Why does this matter for your ROI? Because it allows you to hit exact extraction yields even with rotating seasonal beans, ensuring your staff—regardless of their training level—produces a balanced cup every single time. By automating the expertise, Muldepot CoffeeGear helps you reduce labor costs while maintaining a premium beverage program.
Truth is, the Curtis TP1TT10A3000 ThermoPro Twin 2 Gallon Tall Brewer is a specialized beast. One catch: this is the “Tall” model, standing at over 35 inches. It is specifically designed to accommodate large, gravity-fed thermal servers, so don’t expect it to fit under standard cabinetry. Also, it pulls a heavy load—you’ll need a dedicated 220V single-phase circuit. If your facility isn’t wired for it, the installation will cost you more than the unit itself. We also strongly advise a professional-grade scale inhibitor; these dual boilers are magnets for calcium buildup in high-volume environments.
Curtis TP1TT10A3000 ThermoPro Specifications
- Brew Capacity: Approximately 21.0 Gallons Per Hour (GPH).
- Control Board: G4 Digital Touchscreen with icon-driven navigation.
- Electrical: 220V / Single Phase / 28.0A – 34.0A / 3-Wire.
- Certifications: UL Listed and NSF Commercial Certification.
- Plumbing: 3/8″ Flare tool-less water inlet.
- Dimensions: 35.13″ H x 20.13″ W x 20.38″ D.
- Extraction Tech: Customizable pre-infusion, pulse-brew, and bypass percentages.
- Construction: High-polish, heavy-gauge stainless steel.
Usage Fit & In the Box
The Curtis TP1TT10A3000 ThermoPro Twin 2 Gallon Tall Brewer is the perfect fit for university dining halls, hospital cafeterias, and high-output banquet services. It’s built for back-to-back brewing cycles. However, it is not for small offices or boutiques where you’re only brewing a few pots a day; the energy consumption and thermal mass are optimized for industrial-scale volume, not sporadic use.
In the Box:
- Curtis TP1TT10A3000 ThermoPro Twin 2 Gallon Tall Brewer main brewing unit.
- Two (2) Heavy-duty stainless steel brew baskets.
- Built-in hot water faucet for manual tea service.
- Factory technical manual and installation template.
Secure your workflow and scale your beverage output with the Curtis TP1TT10A3000 ThermoPro Twin 2 Gallon Tall Brewer—where digital precision meets industrial-grade power.
Wilbur Curtis TP1TT10A3000 Specs
Quantity: 1/Each
Shipping Weight: 66 lb.
Width: 18 Inches
Depth: 16 5/8 Inches
Height: 36 5/8 Inches
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 220 Volts
Wattage: 5,100 - 7,600 Watts
Brewer Type: Bulk Dispenser
Coffee Filter Size: 12 1/2" x 4"
Color: Black Silver
Control Type: Digital
Features: Hot Water Faucet Made in America NSF Listed Pourover Option
Plug Type: Hardwire
Power Type: Electric
Style: Double
Type: Coffee Brewers
Water Source: Direct Connection
Common Questions for Curtis TP1TT10A3000
What is the maximum hourly brewing capacity for this Curtis model?
This Twin ThermoPro unit produces up to 21 gallons of coffee per hour by utilizing dual brew heads for high volume efficiency. Professional operators should use 2.0 gallon TF dispensers to maximize throughput and reduce serving delays. This specific configuration ensures your high traffic beverage station maintains consistent service during peak morning rushes without recovery drops.
What are the specific electrical and voltage requirements for installation?
The TP1TT10A3000 requires a 220V 3 Phase connection drawing between 5100 and 7500 Watts depending on the internal heater configuration. A dedicated circuit breaker is mandatory to prevent G3 module failure and ensure electrical safety. Proper amperage verification by a licensed contractor avoids damaging sensitive digital control components during the initial system startup phase.
How should the boiler be maintained for long term operational durability?
Preventative maintenance requires monthly descaling of the stainless steel boiler to remove mineral deposits from the heating elements. We suggest installing a high flow water filtration system to protect precision solenoid valves from debris. Clean water prevents scale buildup on sensors which maintains accurate temperature readings and extends the overall life of the unit.
How does the G3 Digital Control module assist daily brewing operations?
The G3 module offers PID style thermal stability and customizable pulse brewing to lock in specific flavor profiles for different roasts. Integrated self diagnostics alert operators to sensor issues before they cause significant downtime. These digital settings ensure high volume extraction remains consistent across every batch served regardless of the skill level of the staff.
Does Muldepot.com provide purchase security and competitive pricing for this unit?
Yes, Muldepot.com provides a Price Match Guarantee to verify you receive the most competitive value for this authentic Curtis brewer. Investing in professional grade equipment is a major decision so we also back the purchase with 60-day Free Returns. This ensures the commercial kitchen receives the exact performance promised without any financial risk.
