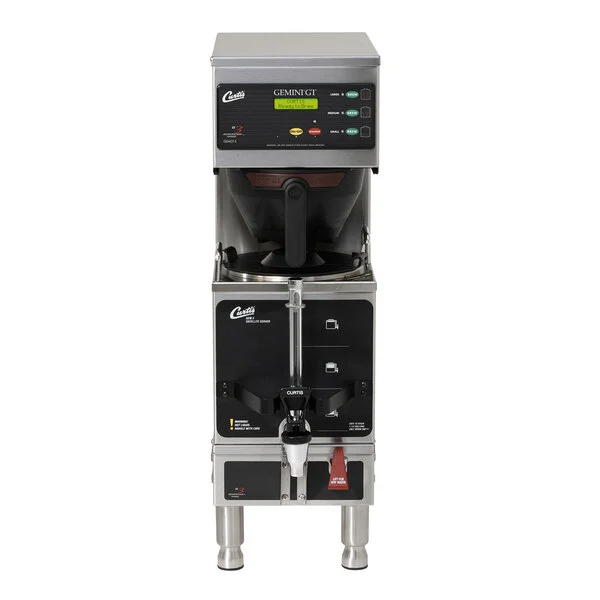

Curtis GEMSS63A1000 – G3 Gemini Single 1.5 Gal Satellite Brewer
In Stock
$840.00
In Stock
Elevate your professional beverage service with the Curtis Gemini Single – 1.5 Gal Satellite Brewer.
- Satellite System: Detachable server for remote coffee station service
- G3 Technology: Precise digital control over extraction and flavor
- Dual Voltage: Adaptable electrical configuration for various commercial sites
- Gold Cup: Meets specialty standards for batch brewing quality
- Curtis Warranty: Two year digital board protection
Description
Curtis GEMSS63A1000 (G3 Gemini) – Intelligent Single Satellite Extraction Hub
The Curtis GEMSS63A1000 is a professional-grade single station brewer designed for high-end hospitality environments that demand portable thermal serving and surgical extraction control. Sourcing Curtis Gemini G3 hardware provides your workspace with a Universal Control Module and Satellite Serving versatility. Look, truth is, the Gemini Single is the “Logistics Specialist”; it utilizes a 1.5-gallon satellite server that can be removed and transported to remote boardroom stations, while the main unit’s G3 intelligence ensures every batch is brewed to precise Gold Cup standards.
G3 Digital Intelligence & Satellite Thermal Retention Logic
The Curtis GEMSS63A1000 utilizes variable pulse brewing and pre-infusion to achieve unrivaled flavor clarity. This high-efficiency coffee station features an integrated hot water faucet and a 2.0-gallon heating tank for rapid recovery. The ROI is realized through its “Deployment Flexibility”; the insulated Satellite servers feature internal heaters to maintain peak temperature without flavor degradation, making it an essential asset for hotels and corporate campuses requiring multi-floor coffee distribution.
Operational Experience: The Gemini system is legendary for its flexibility. The primary benefit is the Satellite Server—being able to brew in the kitchen and serve in a distant conference room without losing heat is a massive win. The G3 board is remarkably reliable and easy to program, allowing for fine-tuned pulse brewing that brings out the best in specialty roasts.
Technical Specifications & Performance Data
- Output Capacity: 4.5 to 12.0 Gallons Per Hour (approx. 72-192 cups/hr)
- Interface: Digital G3 Universal Control Module
- Extraction Tech: Programmable Pulse-Brew, Pre-Infusion, and Volume Control
- Satellite Logic: 1.5 Gallon Insulated Server with Internal Heating Elements
- Tank Volume: 2.0 Gallon Rapid-Recovery Heating Tank
- Electrical Specs: Dual Voltage (120V/1800W or 220V/5000W)
Curtis GEMSS63A1000 Application & In The Box
- Ideal For: Hotel breakfast bars, corporate lounges, and catering halls requiring portable thermal service.
- In The Box: GEMSS Single Brewer, One GEM-3 Satellite Server, and Technical Service Manual.
Curtis GEMSS63A1000 G3 Gemini Single 1.5 Gallon Coffee Satellite Brewer
Shipping Weight: 50 lb.
Width: 9 Inches
Depth: 22 1/4 Inches
Height: 29 3/4 Inches
Amps: 19.5 Amps
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 120/220 Volts
Wattage: 1,800 - 2,800 Watts
Brewer Type: Bulk Dispenser
Coffee Filter Size: 12 1/2" x 4"
Color: Black Silver
Control Type: Digital
Features: Hot Water Faucet NSF Listed Server Included
Plug Type: Hardwire
Power Type: Electric
Style: Single
Type: Coffee Brewers
Water Source: Direct Connection
Technical Questions Regarding the Curtis GEMSS63A1000 Single Brewer
What is the maximum hourly coffee production capacity of this unit?
The G3 system generates 12 gallons of coffee per hour into a 1.5 gallon satellite server. Use the satellite to transport hot coffee to a separate serving station while brewing another batch. This industrial grade production rate ensures that your guests always have access to fresh and hot beverages.
What are the specific electrical and water connection requirements for installation?
This unit requires a 220 volt single phase connection and a constant water pressure of 20 PSI. Connect the brewer to a filtered water line to improve the beverage taste and protect components. Proper installation ensures the heating system performs at peak efficiency while maintaining the safety of the circuit.
How can users ensure long term durability of the internal components?
Wash the satellite server daily to prevent old coffee oils from affecting the taste of new batches. Descale the main water tank every quarter to protect the sensors from mineral deposits and technical errors. Consistent cleaning routines ensure that the machine operates efficiently and remains in excellent working condition.
How does the digital controller manage the coffee brewing temperature?
The G3 technology uses a digital display to set and monitor the precise water heat for brewing. Adjust the pulse brew settings to optimize the extraction time based on the coffee roast used. Accurate digital monitoring ensures the water is always at the perfect temperature for optimal coffee flavor.
Why is Muldepot.com the preferred source for purchasing this industrial equipment?
Muldepot.com offers this Curtis Gemini model with a Price Match guarantee to ensure the best possible value. Benefit from our 60-day returns policy which provides the security you need for industrial equipment investments. We provide expert advice to help you select the right satellite servers for your facility.
