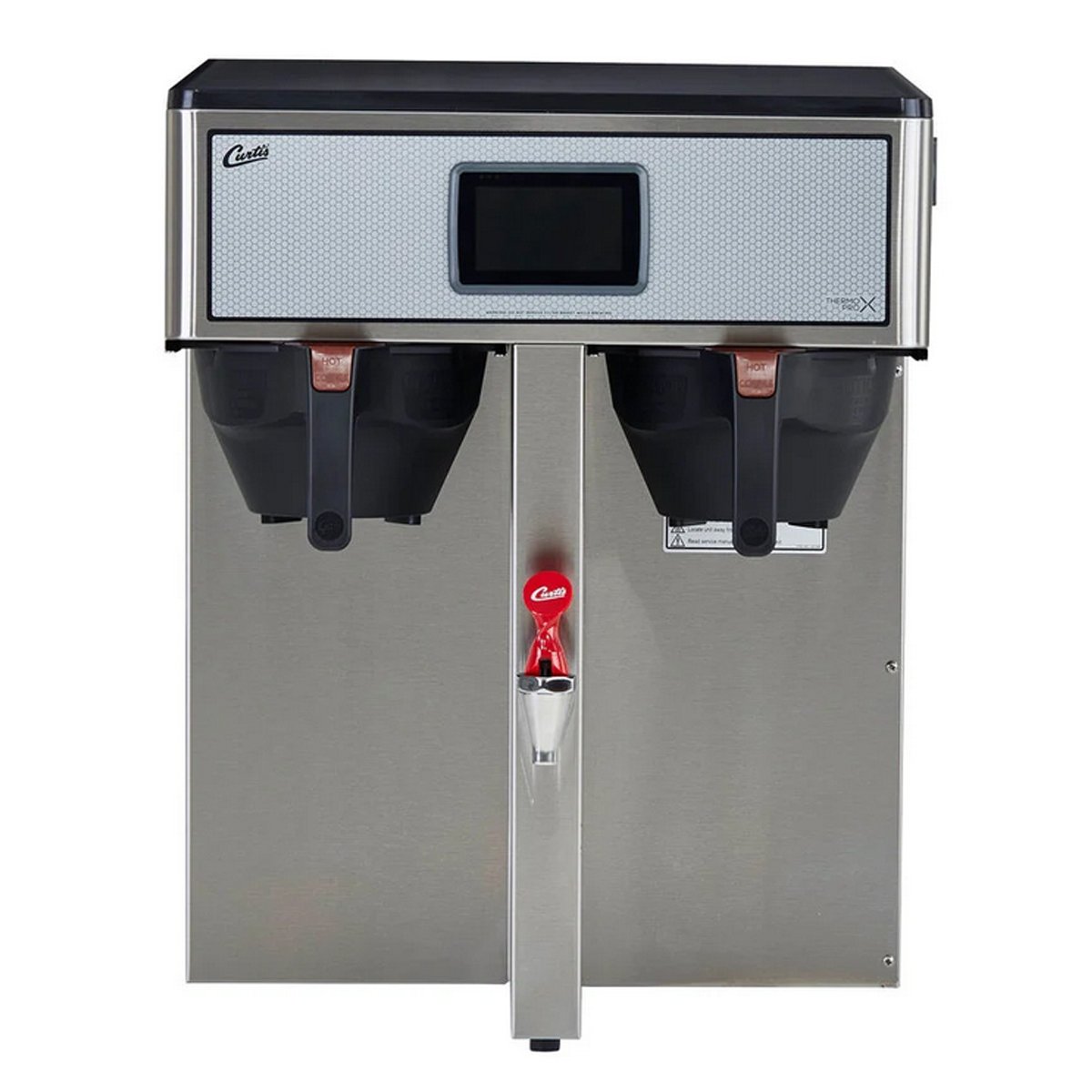

Curtis G4TPX1T10A3100 – ThermoProX Twin 1 Gallon Brewer
In Stock
$1,320.00
In Stock
Curtis G4TPX1T10A3100 serves twin 1-gallon batches for modern offices using ThermoProX technology for superior vacuum insulation and freshness.
• 15-21 gallons per hour brewing performance
• Twin 1 gallon thermal dispenser capacity
• Sleek stainless steel body durable finish
• 120 volts 1800 watts electrical power
• Corporate headquarters and high-end breakrooms
Description
Curtis G4TPX1T10A3100 – High-Speed ThermoProX Twin Thermal Performance
Curtis G4TPX1T10A3100 ThermoProX Twin 1 Gallon Brewer represents the pinnacle of compact high-volume production, engineered for facilities that require the rapid recovery of a 220V system in a 1-gallon batch format. Truth is, serving coffee that has been sitting for hours on a warming plate is a guaranteed way to lose your morning regulars. The Curtis G4TPX1T10A3100 ThermoProX Twin 1 Gallon Brewer solves this by using the “X” high-output boiler and vacuum-insulated servers found in industrial coffee machines to lock in aromatics. This twin-head system allows you to cycle through fresh batches faster than standard brewers, ensuring your guests always receive a cup that tastes exactly as the roaster intended.
Curtis G4TPX1T10A3100 ThermoProX Twin 1 Gallon Brewer Engineering & ROI
The G4 digital touchscreen provides microscopic control over pre-infusion, pulse-brewing, and brew-lockout settings to guarantee consistency across every shift. Here’s the deal: the ThermoProX series is built for speed, offering a significantly faster tank recovery time than the standard G4 series. The ROI for Muldepot CoffeeGear users is found in the 1-gallon batch size; it is perfectly calibrated for medium-to-high volume venues that want to rotate their inventory more frequently to maintain flavor integrity. By utilizing a 220V heater, you can keep up with a continuous stream of guests without ever experiencing the “cold-water lag” common in 110V units.
There is one catch with the Curtis G4TPX1T10A3100 ThermoProX Twin 1 Gallon Brewer regarding its vertical footprint. This is a “Twin” unit but optimized for 1-gallon servers, standing at a more manageable 24.5 inches, but it still requires a dedicated 220V circuit with at least 25 amps. Furthermore, the G4 touchscreen is highly intuitive but sensitive to moisture; ensure your staff is trained to operate it with dry hands to prevent sensor degradation in high-steam kitchen environments.
Curtis G4TPX1T10A3100 ThermoProX Twin 1 Gallon Brewer Technical Specifications
- Electrical: 220V / 23.0A / 5100W / Single Phase / 3-Wire
- GPH Capacity: 12.0 to 15.0 Gallons Per Hour
- Dimensions: 24.5″ Height x 20.2″ Width x 20.4″ Depth
- Plumbing Connection: 3/8″ Flare Water Inlet
- Control System: G4 Digital Touchscreen with Self-Diagnostics
- Certifications: NSF Commercial, UL Listed
- Tank Material: High-Capacity Insulated Stainless Steel
Usage Fit & In the Box
The Curtis G4TPX1T10A3100 ThermoProX Twin 1 Gallon Brewer is ideal for busy hotel breakfast bars, executive lounges, and high-end cafes. It is not for low-volume office environments where a 220V power installation would be an unnecessary infrastructure cost.
In the Box:
- Curtis G4TPX1T Twin Thermal Brewer Unit
- 2x Gourmet Stainless Steel Brew Baskets
- G4 ThermoProX Technical Programming & Service Manual
- Warranty: Wilbur Curtis 2-Year Electronics & 3-Year Hardware Limited Warranty
- Factory Pre-installed Hot Water Side Faucet
Wilbur Curtis G4TPX1T10A3100 Specs
Shipping Weight: 65.5 lb.
Width: 20 Inches
Depth: 20 5/8 Inches
Height: 26 Inches
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 220 Volts
Wattage: 5100/7600 Watts
Brewer Type: Bulk Dispenser
Capacity: 1 Gallon
Color: Silver
Control Type: Touchscreen
Features: Hot Water Faucet Made in America NSF Listed
Output: 21 Gallons Per Hour
Plug Type: Hardwire
Power Type: Electric
Pressure: 20 - 90 PSI
Style: Double
Type: Coffee Brewers
Water Inlet Size: 3/8 Inches
Water Source: Direct Connection
Common Questions for Curtis G4TPX1T10A3100
What makes the ThermoProX series different from standard brewers?
The ThermoProX series features advanced G4 digital controls and enhanced thermal management for high volume precision brewing. We recommend using the matching vacuum servers to maintain heat for up to four hours without an external burner. This system provides superior flavor retention and energy efficiency compared to traditional warming plate setups.
How does the G4 touch screen interface simplify daily operation?
The G4 interface allows for precise PID thermal stability and customizable pulse brewing recipes for both brew heads simultaneously. Built in diagnostics monitor the health of the heating elements to alert you of potential issues before they cause downtime. This digital automation makes it easy for even junior staff to produce professional results with total accuracy.
What are the electrical requirements for this G4 twin model?
This unit requires a 220V Single Phase connection and a dedicated circuit to support the high wattage twin heating elements. A technician should verify the local power supply can handle the peak amperage load to prevent tripping breakers during a rush. Proper electrical grounding protects the sensitive G4 control board and ensures the safety of your staff.
What is the brewing output for this 1 gallon twin brewer?
This G4 ThermoProX model produces up to 15 gallons of coffee per hour while brewing into two 1 gallon vacuum insulated servers. Professional operators should utilize the digital pulse settings to optimize extraction for various coffee densities. This throughput is perfect for high end restaurants that require a steady supply of premium coffee in small batches.
Can I return this G4 twin brewer if it does not meet my needs?
Muldepot.com offers 60-day Free Returns to give you total peace of mind when choosing the G4 ThermoProX system for your venue. We want to ensure this Curtis unit meets both your performance standards and your specific workflow requirements. This policy allows you to test the twin brewing functionality without any long term financial risk to your business.
