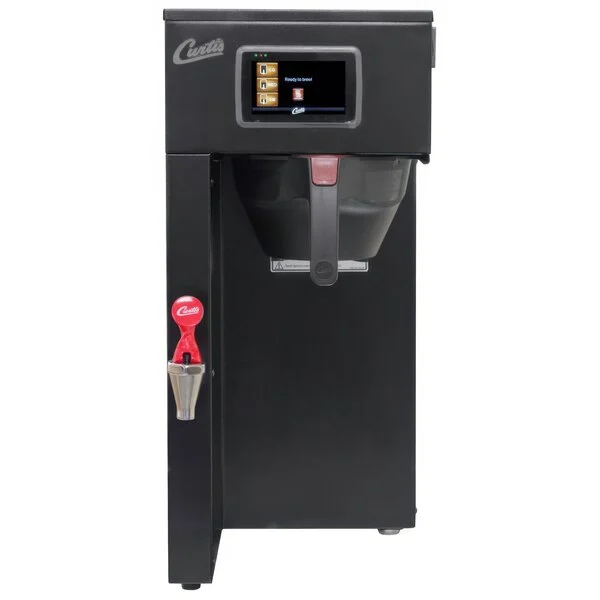

Curtis G4TP1S63B3100 – G4 ThermoPro Single 1 Gal Coffee Brewer
In Stock
$1,190.00
In Stock
Elevate your batch brewing precision with the Curtis G4 ThermoPro – Single 1 Gallon Brewer.
- G4 Technology: Intuitive icon driven touchscreen interface control
- Thermal Stability: Superior heat retention for gallon carafes
- Gold Cup: Meets specialty coffee standards for extraction
- Built-in Diagnostics: Simplified maintenance for busy commercial sites
- Curtis Warranty: Two year digital board protection
Description
Curtis G4TP1S63B3100 – G4 ThermoPro Intelligent Single 1 Gal Station
The Curtis G4TP1S63B3100 is a high-tech single-head thermal brewer designed for executive boardrooms and boutique cafes that prioritize aesthetics and surgical brewing control. Sourcing Curtis G4 technology provides your workspace with a large 4.3-inch icon-driven touchscreen and a sleek Black finish. Look, truth is, the G4 ThermoPro is the “Recipe Master”; it offers one-touch Global Recipes that automatically adjust time, temperature, and volume, while the built-in self-diagnostics provide real-time feedback to prevent user error during peak morning rushes.
Icon-Driven G4 Intelligence & Advanced Self-Diagnostic Logic
The Curtis G4TP1S63B3100 utilizes digital pulse brewing and variable pre-infusion to achieve unrivaled extraction clarity. This space-saving beverage station features an integrated hot water faucet and a “Cold Brew Lockout” sensor that prevents brewing if the water hasn’t reached the precise target temperature. The ROI is realized through its “Predictive Maintenance”; the system’s advanced scale warning sensors notify staff when deliming is required, extending the lifecycle of the internal components and ensuring consistent flavor profiles year-round.
Professional Insights: The Curtis G4 is exceptionally stylish in black, making it perfect for front-of-house placement. The icon-driven interface reduces training time to minutes—if you can use an iPad, you can brew a perfect batch on this. Its energy-saving mode is also highly customizable, which is great for reducing overhead in offices that aren’t running 24/7.
Technical Specifications & Performance Data
- Output Capacity: 4.5 to 7.5 Gallons Per Hour (approx. 72-120 cups/hr)
- Interface: G4 4.3″ Touchscreen with On-Screen Instructions
- Brew Control: Temperature, Pulse-Brew, Pre-Infusion, & Water Bypass
- Tank Volume: 2.2 Gallon Rapid-Recovery Tank
- Electrical Specs: Dual Voltage (110V/1650W or 220V/2700W)
- Features: Advanced Scale Warning & USB Profile Portability
Curtis G4TP1S63B3100 Application & In The Box
- Ideal For: High-end offices, boutique cafes, and showrooms where design and ease-of-use are critical.
- In The Box: G4 ThermoPro Brewer (Black), Stainless Steel Brew Basket, and User Documentation.
Curtis G4TP1S63B3100 G4 ThermoPro Black Single 1 Gallon Coffee Brewer
Shipping Weight: 44.5 lb.
Width: 11 1/8 Inches
Depth: 20 3/4 Inches
Height: 24 3/4 Inches
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 110/220 Volts Dual Voltage
Wattage: 1650/2700 Watts
Brewer Type: Bulk Dispenser
Capacity: 1 Gallon
Control Type: Touchscreen
Features: Hot Water Faucet Made in America NSF Listed
Output4 1/2 Gallons Per Hour
Plug Type: NEMA L14-20P
Power Type: Electric
Style: Single
Type: Coffee Brewers
Water Inlet Size: 3/8 Inches
Water Source: Direct Connection
Technical Questions Regarding the Curtis G4TP1S63B3100 Single Brewer
What is the maximum hourly coffee production capacity of this unit?
This system produces 12 gallons of coffee per hour using the advanced G4 digital control system. Use a 1.0 gallon thermal dispenser to keep the coffee hot without the need for a warmer. Industrial grade throughput ensures that your operation can handle a steady stream of coffee drinking customers.
What are the specific electrical and water connection requirements for installation?
The brewer requires a 220 volt electrical supply and a 0.25 inch male flare water connection. Connect the unit to a filtered water line to improve the beverage taste and protect the machine. Meeting these requirements ensures the longevity of the heating system and the accuracy of the water sensors.
How can users ensure long term durability of the internal components?
Run a daily cleaning cycle using the programmed menu to flush the internal components of any residue. Inspect the water inlet valve for leaks or mineral buildup to prevent damage to the internal electronics. Proper care of this heavy duty machine ensures it remains a reliable part of your kitchen.
How does the digital controller manage the coffee brewing temperature?
The G4 technology uses a large touch screen to provide real time feedback on the water temperature. Adjust the brew settings to include a pre-infusion period for a more complex and balanced flavor profile. Accurate digital monitoring ensures the water is always at the perfect temperature for optimal coffee extraction.
Why is Muldepot.com the preferred source for purchasing this industrial equipment?
Muldepot.com offers a Price Match guarantee on this Curtis G4 model to give you the best deal. Our 60-day returns policy provides the security you need when investing in high quality industrial gear. We are committed to providing reliable equipment and expert advice for all your coffee brewing needs.
